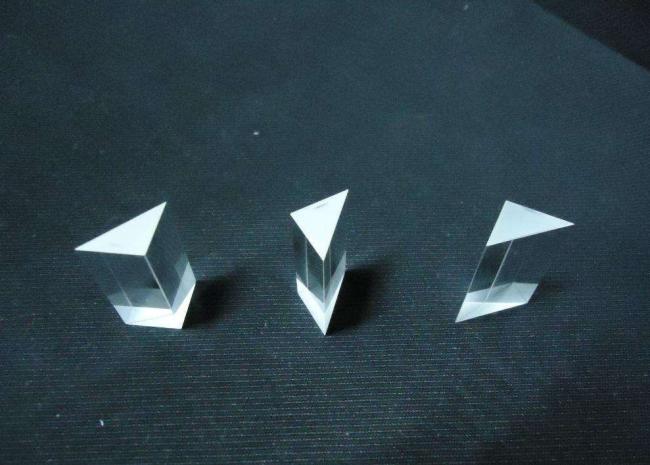

Miniature Optical Glass Telescope Lenses Crystal Triangular Prism 45 60 90 360 Degree Right Angle Lens
Miniature Optical Glass Telescope Lenses Crystal Triangular Prism 45 60 90 360 Degree Right Angle Lens
Optical Telescope Lenses
Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.
Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove Prisms, Panta Prisms, Roof Prisms, Beamsplitters, Wedge Prisms, Rhomboid Prisms, Corner Cube and Tapered Light Pipe Prism etc..,
Worldhawk accepts the following products customized services: micro-prism, special angle prism, high-precision prism ......
Please email to us for get an offer.

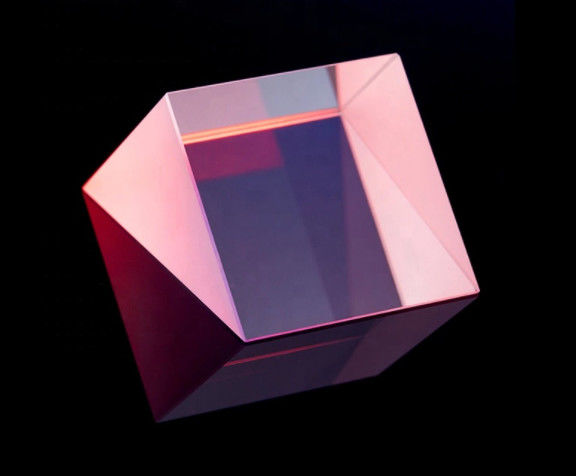

Optical Prism
| Parameters | Standard | High Pricision |
| Material | N-BK7, Fused Silica, Custom | |
| Size | 0.5mm-380mm | |
| Size tolerance | ±0.1mm | ±0.03mm |
| Angle Tolerance | <3' | <0.5'' |
| Clear Aperture | ≥90% | 100% |
| Surface Quality | 60/40, 40/20 | 20/10, 10/5 |
| Surface Flatness | 1/2 lambda, 1/4lambda | 1/10Lambda, 1/20Lambda |
| Parallelism | +/-3' , +/-30'' | <0.5'' |
| Bevel | <0.2mm±45° | No Bevel (The Angle is unbroken) |
| Coating | Uncoated, AR, BBAR, Reflective | |
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
