ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
Product description
Stainless steel tee is an important element used in piping systems. They are commonly used on branch lines to distribute water or other fluids from one main line to two or more branch lines. Stainless steel tee plays an important role in industry and home, and its main role is to strengthen the connectivity and stability of the pipeline system.
Chemical Composition Of ASME B16.9 TP310S TEES
| Cr | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Ni | Mo |
| 24.00-26.00 | 0.25 | 2.00 | 1.00 | 0.03 | 0.045 | 19.00-22.00 |
ASME B16.9 TP310S TEES Mechanical propcrties
| Grade | Tensile strength (MPa) | Elongation (% in 50mm) | Yield strength 0.2% proof (MPa) | Hardness≤ |
| 310s | 655 | 45 | 310 | 85 |
Application
Chemical processing
Petroleum
Pulp/paper
Refining
Textile
Waste treatment, Marine
Utilities/power generation
Industrial equipment
Automotive
Gas compression and distribution industries Pipe Tees are also recommended for industrial plant fluid power systems.
ASME B16.9 TP310S Tee Size Referance
| Nominal Pipe Size (NPS) | Outside Diameter at Bevel | Center-to-End | |
| Run, C | Outlet, | ||
| M | |||
| [Notes ⑴ and ⑵] | |||
| 1/2” | 21.3 | 25 | 25 |
| 3/4” | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1-1/4” | 42.2 | 48 | 48 |
| 1-1/2” | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2-1/2” | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3-1/2” | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1 016 | 749 | 749 |
| 42 | 1 067 | 762 | 711 |
| 44 | 1 118 | 813 | 762 |
| 46 | 1 168 | 851 | 800 |
| 48 | 1 219 | 889 | 838 |

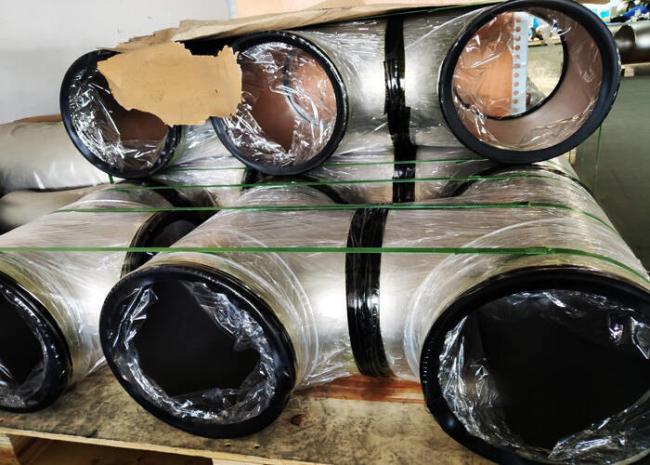

product image
