DIN1.4828 Stainless Steel Tube Seamless Cold Drawn SCH10S
1.4828 Stainless Steel Pipe Applications
Widely used in the areas such as reboilers,evaporators.pressure vessels,tanks,packing trays,reactors,pumps,valves and piping
Mechanical properties
| Properties | Metric | Imperial |
| Tensile strength | 620 MPa | 89900 psi |
| Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
| Izod impact | 120 - 165 J | 88.5 - 122 ft-lb |
| Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
| Elastic modulus | 200 GPa | 200 GPa |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell | 147 | 147 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Chemical composition
| Grade | C | Cr | Mn | Ni | P | S | Si | Iron |
| 1.4828 | 0.20 | 22.0-24.0 | 2.0 | 12.0-15.0 | 0.045 | 0.030 | 0.75 | Balance |

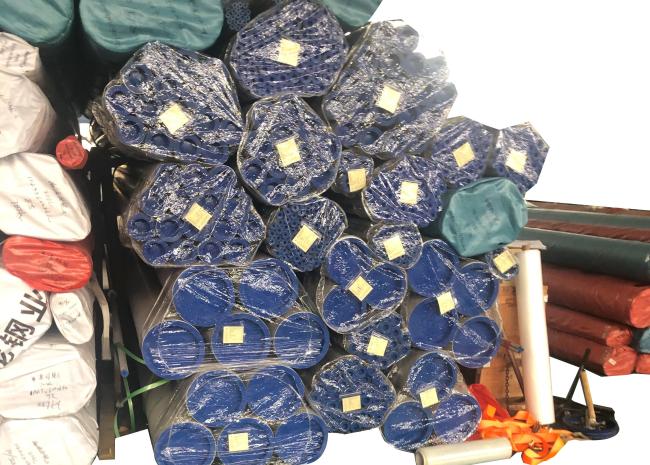

1.4828 stainless steel pipe Packing
1.4828 Stainless Steel Seamless Pipes and Tubes is sleeved into plastic bag , wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. then into containers to avoid any damage
Why choose us
1.Size control
2.Chemical composition control
4.ultrasonic testing of steel tube
3.hydraulic testing machine
Package detail
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
