Marine Grade Small / Large Diameter Metric Stainless Steel Pipe Asme Schedule 40 Sch80
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
30 DAYS
Brand:
zheheng
Product Description
Buy asme schedule 10 / 40 /80 industrial small / large diameter stainless steel pipe for marine grade
zheheng steel supply and produce schedule 10 stainless steel pipe,schedule 40 stainless steel pipe,schedule 80 stainless steel pipe,small stainless steel pipe,large diameter stainless steel pipe,
large stainless steel pipe,marine grade stainless steel pipe,industrial stainless steel pipe,asme stainless steel pipe,
Our product range:
Material: 201.202.301.302.304.304L.310S.316.316L.321.430.430A.309S.2205.2507.2520.430.410.440.904Lect. Or Customized
Standard: GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Size: ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm)
Length: Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Surface: Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on.
Application: Decoration, construction and upholstery, etc
Package: Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request
Lead Time: 7-10days for one FCL Or according to order list detail
Payment: A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents.
C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance
E: 100% L/C usance. F: 100% L/C at sight.
Sample: we could offer the sample for free charge but do not pay the cost of freight.
SCH10 ,SCH40,SCH80 Nominal wall thickness comparsion table
| Nominal wall thickness comparsion table for stainless steel pipe (ASME B36.10 & B36.19) | |||||
| DNmm | DNin | φmm | SCH10S | SCH40S | Sch40 |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 |
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 |
| 15 | 1/2 | 21.3 | 2.11 | 2.77 | 2.77 |
| 20 | 3/4 | 26.7 | 2.11 | 2.87 | 2.87 |
| 25 | 1 | 33.4 | 2.77 | 3.38 | 3.38 |
| 32 | 1 1/4 | 42.2 | 2.77 | 3.56 | 3.56 |
| 40 | 1 1/2 | 48.3 | 2.77 | 3.68 | 3.68 |
| 50 | 2 | 60.3 | 2.77 | 3.91 | 3.91 |
| 65 | 2 1/2 | 76 | 3.05 | 5.16 | 5.16 |
| 80 | 3 | 88.9 | 3.05 | 5.49 | 5.49 |
| 90 | 3 1/2 | 101.6 | 3.05 | 5.74 | 5.74 |
| 100 | 4 | 114.3 | 3.05 | 6.02 | 6.02 |
| 125 | 5 | 141.3 | 3.4 | 6.55 | 6.55 |
| 150 | 6 | 168.3 | 3.4 | 7.11 | 7.11 |
| 200 | 8 | 219.1 | 3.76 | 8.18 | 8.18 |
| 250 | 10 | 273 | 4.19 | 9.27 | 9.27 |
| 300 | 12 | 323.8 | 4.57 | 9.53 | 10.31 |
| 350 | 14 | 355.6 | 4.78 | 11.13 | |
| 400 | 16 | 406.4 | 4.78 | 12.7 | |
| 450 | 18 | 457 | 4.78 | 14.27 | |
| 500 | 20 | 508 | 5.54 | 15.09 | |
| 550 | 22 | 559 | 5.54 | ||
| 600 | 24 | 610 | 6.35 | 17.48 | |
| 650 | 26 | 660 | |||
| 700 | 28 | 711 | |||
| 750 | 30 | 762 | 7.92 | ||
| 800 | 32 | 813 | 17.48 | ||
| 850 | 34 | 864 | 17.48 | ||
| 900 | 36 | 914 | 19.05 | ||

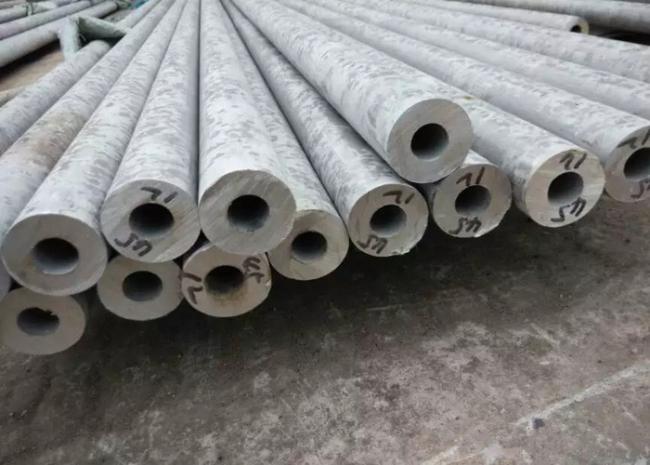

Our product show :
