Rotationally Molded Poly Box Truck Heavy Duty 400l 12 Bushel For Storage
Custom Rotational Molding 10 Cubic Bushel Foot Material Handleing recycling Laundry Carts
Description
Treering plastic laundry trolley has a seamless molded polyethylene body and is available with hardwood
base , PE sheet base (5mm to 15mm thickness )or a 5-14-gauge galvanized steel base. All base options
come standard with 3” -12" poly casters and are available in Many different colors (Such as blue, red, gray,
and normal stock color white). These poly trucks are great for hotels, poolside towel receptacle, parts
storage in a warehouse, moving and other storage and transportation applications.
Features:
-
Molded in insert plate , Caster bolted . K400L , only this volum
-
-
Seamless smooth finish with rounded corners
-
-
Choice of metal,PE sheet or hardwood base
-
-
Many colors avaiable , stock color is white
-
-
Plastic body is bolted to wood ,PE sheet or metal base
-
-

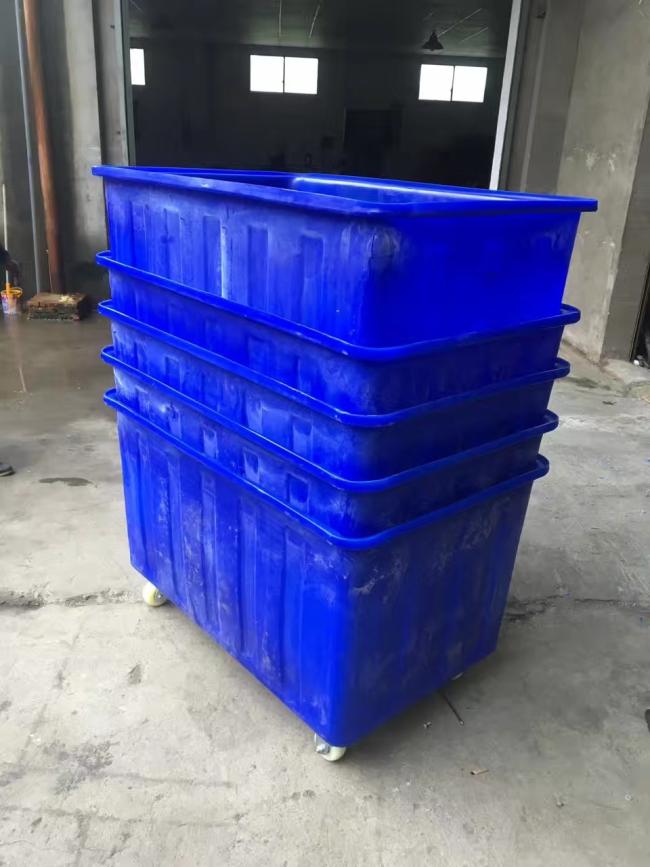

Nestable when empty
-
-
Ships fully assembled ( full cage cart shouldbe seperate delivery)
-
-
Available in 30 sizes (50kg to 2500kg)
-
-
.OEM ( customized ) your cart size
Specifications :
|
Size
|
K400-1 : L 1160*737*H 635 mm ( this one )
|
|
Base
|

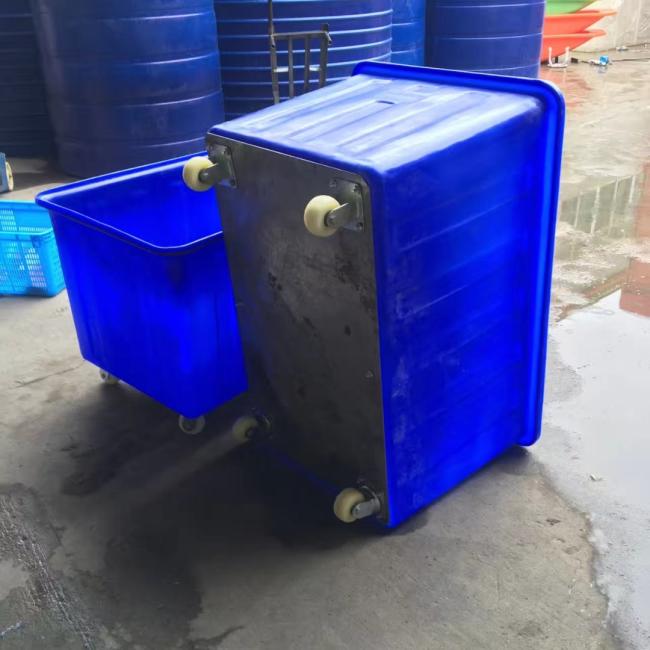

Moldeded in insert plate ( which allows casters to bolt thru the base and directly to the cart for add strength and stability ) Galvanized steel base /PE sheet bases / steel cart . like below picture show
|
|
Structure and composition
|
Type :1 Just four wheels Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )
Type :2 four wheels +flat steel sheet Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )
Type :3 four wheels +half steel cage Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )
Type :4 four wheels + full cage +handle Fitted with 2 x fixed, 2 x swivel ( castors size can booked as what you want )
|
|
Allication
|
Multiple used include recycling , Material handling , Laudry services , Waste ,
Managerment and more
The carts feature smooth interior walls, which allow for easy cleaning and no snagging of
the laundry or linens in the cart
|
The below sheet is the size of the inner plastic laundry bins :
| Model | Capacity | UP Size (L*W) mm | Bottom Size (L*W) mm |
Height (mm) |
| K50L -1 | 50L | 457*305 | 357*205 | 483 |
| K50L | 50L | 590*430 | 470*320 | 350 |
| K90L | 90L | 680*480 | 580*380 | 370 |
| K120L | 120L | 720*480 | 610*390 | 400 |
| K140L | 140L | 740*530 | 620*430 | 420 |
| K160L-1 | 160L | 735*510 | 640*450 | 500 |
| K160L-2 | 160L | 750*550 | 640*470 | 490 |
| K180L | 180L | 510*510 | 450*450 | 600 |
| K180L-1 | 180L | 510*510 | 450*450 | 550 |
| K200L-2 | 200L | 850*600 | 720*500 | 550 |
| K200L-3 | 200L | 775*575 | 675*490 | 590 |
| K300L-1 | 300L | 1080*700 | 930*530 | 625 |
| K300L-2-A | 300L | 900*650 | 750*500 | 670 |
| K300L-3 | 300L | 1000*650 | 860*530 | 630 |
| K300L-5 | 300L | 800*560 | 700*480 | 850 |
| K330L | 330L | 772*772 | 630*630 | 844 |
| K400L | 400L | 1150*760 | 1025*630 | 650 |
| K400L-1 | 400L | 980*760 | 820*600 | 690 |
| K450L | 450L | 1110*810 | 885*640 | 660 |
| K500L | 500L | 1320*800 | 1070*650 | 650 |
| K600L | 600L | 1450*900 | 1220*700 | 670 |
| K700L | 700L | 1050*150 | 950*950 | 770 |
| K700L-1 | 700L | 1310*910 | 1100*750 | 800 |
| K800L | 800L | 1575*1210 | 1370*1035 | 580 |
| K1000L -1 | 1000L | 1140*1140 | 940*940 | 1170 |
| K1000L-2 | 1000L | 1100*1100 | 880*880 | 1100 |
| K1000L | 1000L | 1560*1130 | 1350*1020 | 730 |
| K1100L | 1100L | 1800*1200 | 1550*1000 | 600 |
| K1150L | 1150L | 1940*1120 | 1820*1000 | 600 |
| K1200L | 1200L | 1950*1240 | 1730*1020 | 600 |
| K1200L-1 | 1200L | 2000*1170 | 1700*860 | 750 |
| K1300L | 1300L | 1850*1380 | 1580*1130 | 570 |
| K1300L-1 | 1300L | 2100*1080 | 1794*744 | 880 |
| K1500L | 1500L | 2030*1220 | 1800*1030 | 650 |
| K1600L | 1600L | 2060*1350 | 1790*1080 | 800 |
| K1600L-1 | 1600L | 2120*1220 | 1800*960 | 800 |
| K1650 | 1650L | 1950*1320 | 1650*1100 | 770 |
| K1700L | 1700L | 2130*1360 | 1850*1100 | 600 |
| K1800L | 1800L | 2000*1280 | 1660*970 | 1000 |
| K2000L | 2000L | 2930*1330 | 2650*1100 | 650 |
| K2500L | 2500L | 3160*1340 | 2890*1100 | 700 |
If you book the steel cage type using your shape or customzied your bins size , please let me know details , we accept OEM service
