700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3-20 days
Brand:
Treering
Product Description
700 litrer OEM Rotational Molding Vertical Plastic Storage Tank For indoor and outdoor liquid Storage
Desciption of the water tank
Plastic Vertical Storage Tanks are manufactured from Food Grade Polyethylene (LLDPE)) with U.V.
inhibitors and designed for containment of liquids of up to 1.65 specific gravity
Roto Tank walls are translucent for level viewing and equipped with gallon indicators. the wall thickness
can be customized from 3.5- 10 mm .
The PE tank chemical properties in the temperature range from -40 ° C to +60 ° C.
The strength of tanks provided by the ribs and shape of products.
Main used for storage of water, car wash tanks, biodiesel, liquid fertilizer, liquid feed, reverse osmosis
systems, vegetable oils and agricultural/industrial chemicals
Outlet avaiable as your request
Vertical tank volume from 200L to 50, 000 liter
Durable Polyethylene tanks -one time produced , not rust
Most Application as below :
- Chemical Storage , Mixing , Transport
- above ground cisterns
- residential safe drinking water
- rainwater harvesting
- long term water storage
- emergency potable water storage
- fire protection water tanks
- farm irrigation

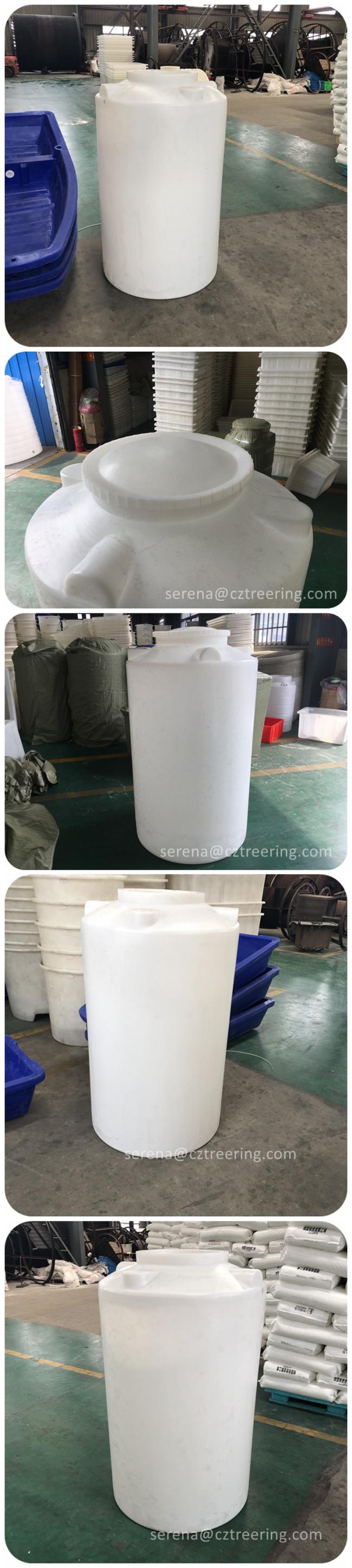

Water tank Photo
Water tank outlet can be avaiable , normally we can install the fitting and welded flange at the bottom
Roto water tank , we offen install DN20 ,DN 25 ,DN32 ,DN 50 connection or welded DN50 Flange if you did not any idear
about it , certainly , we will do as your requested in the end . we will offer the best suggestions .
the tank ladder and Protected Steel bar avaiable ( like Second picture)
Top Screw Cover ,Can be remove after screw it
Tank body rid , protect the tank ,Prevent bulk after install full liquids , especilly when the bottom have outlet ,
All the size sheet for the water tank
|
Mould
|
Capacity
|
Specification
|
|
PT200
|
200L
|
Diameter: 560mm
Caliber :370 mm
Heigh : 900 mm
Plastic thickness :3mm
|
|
PT300
|
300L
|
Diameter: 720mm
Caliber :450 mm
Heigh : 920 mm
Plastic thickness :3.5mm
|
|
PT500
|
500l
|
Diameter: 850mm
Caliber :450 mm
Heigh : 1100 mm
Plastic thickness :4mm
|
|
PT800
|
800L
|
Diameter: 1000mm
Caliber :450 mm
Heigh : 1270 mm
Plastic thickness :4.5mm
|
|
PT1000
|
1000L
|
Diameter: 1070mm
Caliber :450 mm
Heigh : 1400 mm
Plastic thickness :5mm
|
|
PT1500
|
1500L
|
Diameter: 1210mm
Caliber :450 mm
Heigh : 1530 mm
Plastic thickness :5.5mm
|
|
PT2000
|
2000L
|
Diameter: 1330mm
Caliber :450 mm
Heigh :1700 mm
Plastic thickness :5mm
|
|
PT3000
|
3000L
|
Diameter: 1500mm
Caliber :450 mm
Heigh : 1880 mm
Plastic thickness :6.5mm
|
|
PT4000
|
4000L
|
D1700*H2100 mm
|
|
PT5000
|
5000L
|
D1820*H2230 mm
|
|
PT6000
|
6000L
|
D12030*H2420 mm
|
|
PT8000
|
8000L
|
D12030*H3100 mm
|
|
PT10000
|
10000L
|
Diameter: 2250mm
Caliber :650m
Heigh : 2750m
Plastic thickness :12.5
|
|
PT15000
|
15000L
|
D2680*H3030 mm
|
|
PT20000
|
20000L
|
D2700*H3950 mm
|
|
PT30000
|
30000L
|
D3100*H4300 mm
|
|
PT4000
|
40000L
|
D3400*H5000mm
|
|
PT50000
|
50000L
|
D3400*H6500 mm
|
