Low Profile Hexagon Cassette Torque Wrench Fpr Loosening And Tightening Nuts
PDCT series of hexagon cassette hydraulic torque wrench for industrial bolt solution
Characters:
1. Low profile hydraulic torque wrench manufacturer, high quality with good performance.
2. High strengthen aluminium-titanium alloy body.
3. 700 bar maximum working pressure, Repeat accuracy ±3%
4. 360° multi-positional swivel quick release couplings
5. Can work with the high resistance sockets, suitable for more size of nuts.
Technical Data:
| SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH | |||||||||||
| MODEL | 2PDCT | 4PDCT | 8PDCT | 14PDCT | 18PDCT | 30PDCT | 50PDCT | ||||
| TORQUE(N.m) | 232-2328 | 241-2414 | 585-5858 | 647-6474 | 1094-10941 | 1177-11774 | 1852-18521 | 2695-26958 | 488-41882 | 4459-44593 | 7081-70813 |
| NUT SIZE(S) | 19-55 | 60 | 34-65 | 70-80 | 41-95 | 100-105 | 50-117 | 65-130 | 110-155 | 160-175 | 105-225 |
| POWER HEAD WEIGHT(KG) | 0.9 | 0.9 | 1.7 | 1.7 | 3 | 3.1 | 4.6 | 6.5 | 10.4 | 10.4 | 35.5 |
| WORKING HEAD WEIGHT(KG) | 1.5 | 1.5 | 3.4 | 3.4 | 6.3 | 6.3 | 11.4 | 14.3 | 20.5 | 20.5 | 42 |
| L | 196 | 196 | 258 | 263 | 30 | 311 | 360 | 388 | 430 | 441 | 493 |
| H1 | 126 | 129 | 163 | 173 | 192 | 201 | 225 | 264 | 303 | 315 | 328 |
| H2 | 102 | 105 | 136 | 146 | 168 | 177 | 2045 | 231 | 272 | 285 | 295 |
| W1 | 32 | 32 | 42 | 42 | 53 | 53 | 64 | 71 | 85 | 85 | 102 |
| W2 | 51 | 51 | 66 | 66 | 83 | 83 | 99 | 109 | 131 | 131 | 160 |
Product Drawings:
FAQ:
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
2. Package
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
3. Warranty.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.

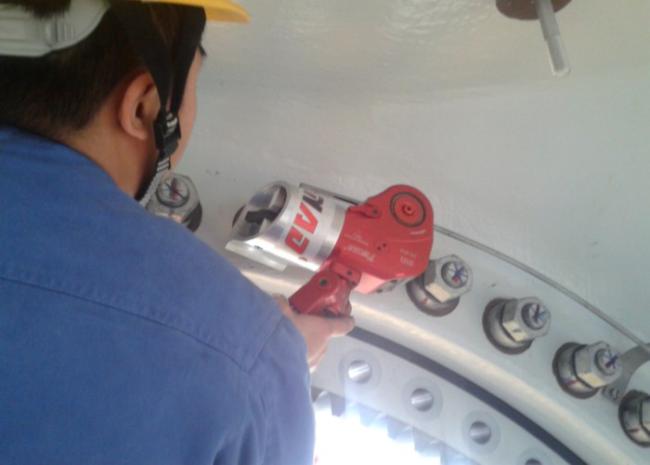

Application field:
Our hydraulic torque wrenches are wildely used in mining , wind power plant , petroleum , chemical and many other field
