Ft.lb square drive hydraulic torque wrench , 451-4542N.m with 1" square drive
3PDTA square drive hydraulic torque wrench , 451-4542N.m with 1" square drive
Characters:
2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions;
3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will.
4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%

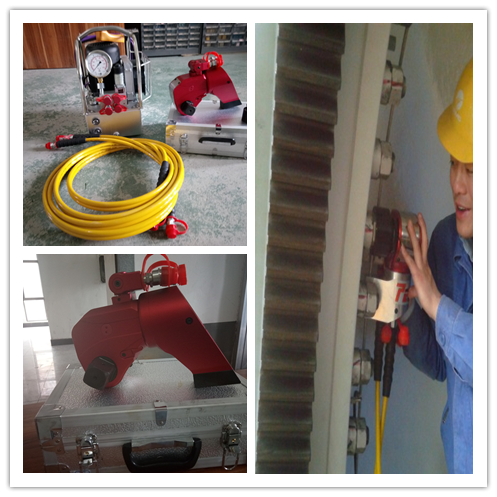

Products Drawings:
Technical Data:
| SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | |||||||||||
| MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA | 50PDTA |
| TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 | 7200-72000 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
| WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 | 87 |
| L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 | 400 |
| L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 | 516 |
| H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
| H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 | 223 |
| H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 | 291 |
| H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 | 341 |
| R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 | 81 |
| R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 | 259 |
| SQUARE DRIVE | 3/4" | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2" | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ |
Application field:
Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.
FAQ:
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
2. Package
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
3. Warranty.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
