2695-26958N.M Hexagon Cassette Type Hydraulic Torque Wrench For Mining / Power Plant
2695-26958N.m 18PDCT Hexagon cassette type hydraulic torque wrench for mining , power plant
Application field:
Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.
Characters:
1. Low profile hydraulic torque wrench manufacturer, high quality with good performance.
2. High strengthen aluminium-titanium alloy body.
3. 700 bar maximum working pressure, Repeat accuracy ±3%
4. 360° multi-positional swivel quick release couplings
5. Can work with the high resistance sockets, suitable for more size of nuts.
Product Drawings:
Technical Data:
| SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH | |||||||||||
| MODEL | 2PDCT | 4PDCT | 8PDCT | 14PDCT | 18PDCT | 30PDCT | 50PDCT | ||||
| TORQUE(N.m) | 232-2328 | 241-2414 | 585-5858 | 647-6474 | 1094-10941 | 1177-11774 | 1852-18521 | 2695-26958 | 488-41882 | 4459-44593 | 7081-70813 |
| NUT SIZE(S) | 19-55 | 60 | 34-65 | 70-80 | 41-95 | 100-105 | 50-117 | 65-130 | 110-155 | 160-175 | 105-225 |
| POWER HEAD WEIGHT(KG) | 0.9 | 0.9 | 1.7 | 1.7 | 3 | 3.1 | 4.6 | 6.5 | 10.4 | 10.4 | 35.5 |
| WORKING HEAD WEIGHT(KG) | 1.5 | 1.5 | 3.4 | 3.4 | 6.3 | 6.3 | 11.4 | 14.3 | 20.5 | 20.5 | 42 |
| L | 196 | 196 | 258 | 263 | 30 | 311 | 360 | 388 | 430 | 441 | 493 |
| H1 | 126 | 129 | 163 | 173 | 192 | 201 | 225 | 264 | 303 | 315 | 328 |
| H2 | 102 | 105 | 136 | 146 | 168 | 177 | 2045 | 231 | 272 | 285 | 295 |
| W1 | 32 | 32 | 42 | 42 | 53 | 53 | 64 | 71 | 85 | 85 | 102 |
| W2 | 51 | 51 | 66 | 66 | 83 | 83 | 99 | 109 | 131 | 131 | 160 |
FAQ:
1, How to choose the correct model?
a. according to your required max. torque force.
b. your nuts size.
2. Package
Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.
3. Warranty.
We provide one year quality warranty from the shipping date. except the artificial damage
4. Delivery time
Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.

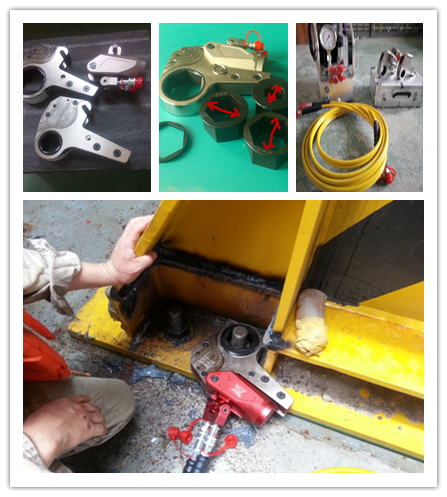

Construction site:
Our hydraulic torque wrenches are wildely used in mining , wind power plant , petroleum , chemical and many other field
The selection of hydraulic wrench is determined by bolt size, torque requirements and space range.
- Bolt size, firstly, need to confirm the specification of the bolt, metric or imperial, and the bolt size. If including many different size of nuts, we suggest choose different model of hydraulic torque wrench according to nuts size and torque force.
- The specification and strength grade of bolts are the most critical parameters of hydraulic torque wrench selection.
- Space position of bolts and nuts, if the space permitted, PDTA square drive hydraulic torque wrench and PDCT low profile hydraulic torque wrench are suitable, if the space is narrow, we suggest to adopt the PDCT series of wrench.
- 1 ) One model of hydraulic wrench can only solve several similar bolts, usually with 1 - 10 impact sockets;
2 ) it is best for qualified manufacturers to use an electric pump with two wrench heads, and use it diagonally, which can improve efficiency and torque more accurately.
3 ) hydraulic wrenches must be used by special personnel, kept by special personnel and often maintained, such as oil change and cleaning.
