Red Color Hydraulic Lightweight Torque Wrench With 1 1/2" Square Drive
Price:
Negotiable
MOQ:
1set
Delivery Time:
3-4 Working days
Brand:
PENAD
Product Description
5PDTA high quality hydraulic torque wrench with 1 1/2" square drive
Technical Data:
| SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | |||||||||||
| MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA | 50PDTA |
| TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 | 7200-72000 |
| BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
| WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 | 87 |
| L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 | 400 |
| L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 | 516 |
| H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
| H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 | 223 |
| H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 | 291 |
| H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 | 341 |
| R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 | 81 |
| R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 | 259 |
| SQUARE DRIVE | 3/4" | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2" | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ |
Characters:
1. The hydraulic torque wrench main body, made of high-tech aerospace materials and ultra-high strength aluminum-titanium alloy steel to integrally form the fuselage, thus comprehensively strengthening the strength and toughness of the fuselage;
2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions;
3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will.
4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%
2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions;
3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will.
4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%
Products Drawings:
The selection of hydraulic wrench is determined by bolt size, torque requirements and space range.
- Bolt size, firstly, need to confirm the specification of the bolt, metric or imperial, and the bolt size. If including many different size of nuts, we suggest choose different model of hydraulic torque wrench according to nuts size and torque force.
- The specification and strength grade of bolts are the most critical parameters of hydraulic torque wrench selection.
- Space position of bolts and nuts, if the space permitted, PDTA square drive hydraulic torque wrench and PDCT low profile hydraulic torque wrench are suitable, if the space is narrow, we suggest to adopt the PDCT series of wrench.
- 1 ) One model of hydraulic wrench can only solve several similar bolts, usually with 1 - 10 impact sockets;
2 ) it is best for qualified manufacturers to use an electric pump with two wrench heads, and use it diagonally, which can improve efficiency and torque more accurately.
3 ) hydraulic wrenches must be used by special personnel, kept by special personnel and often maintained, such as oil change and cleaning

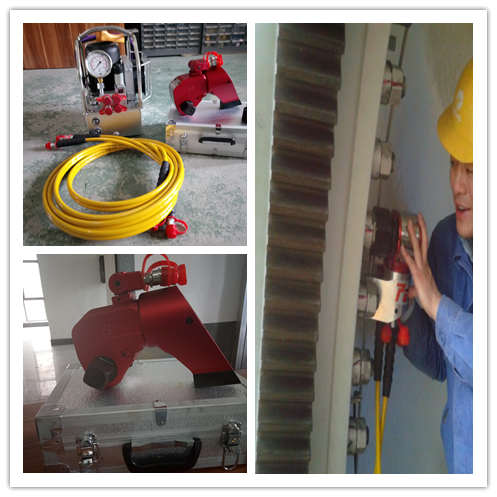

Construction Site:
