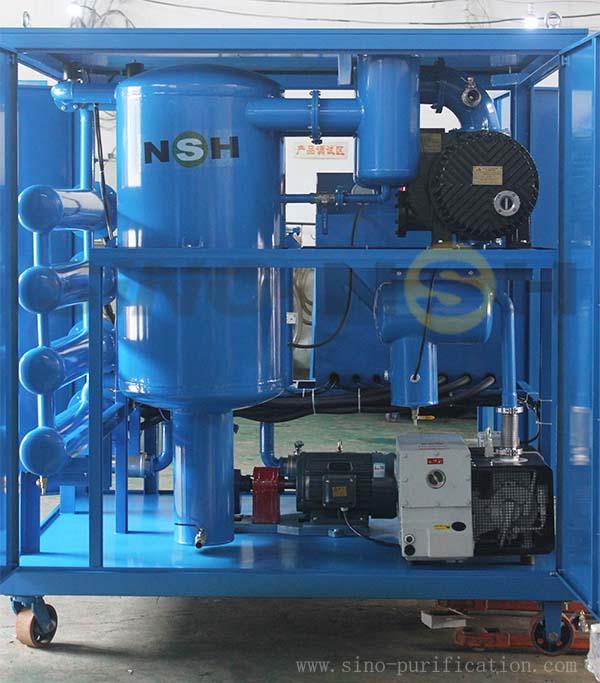

3000L/H Automatic Dehydration Double-Stage Vacuum Transformer Oil Purifier For Used Oil

Filter maintenance:

1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the filter element, at the same time empty the shell visceral oil, clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies

36kW 3000L/H Transformer Oil Purifier Function:

1)Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.

2)Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.

3)Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.

4)ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies. ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies.

36kW 3000L/H Vacuum Transformer Oil Purifier Description:

1. Double-Stage Vacuum Transformer Oil Purifier is a dehydration and degassing unit with thermal and double-stage vacuum processing.
2. Double-Stage Vacuum Transformer Oil Purifier is mainly used to improve the properties of insulating oils in electric power transformer and other oil filed electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
3.Combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.
4. Maintains an optimized structure and safe controls as as to meet compresive requirement of transformer manufacturers and service company.

Corollary Equipment-VR Vacuum Pump Set:

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:

Other Optional for Transformer Oil/Insulation Oil:

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
