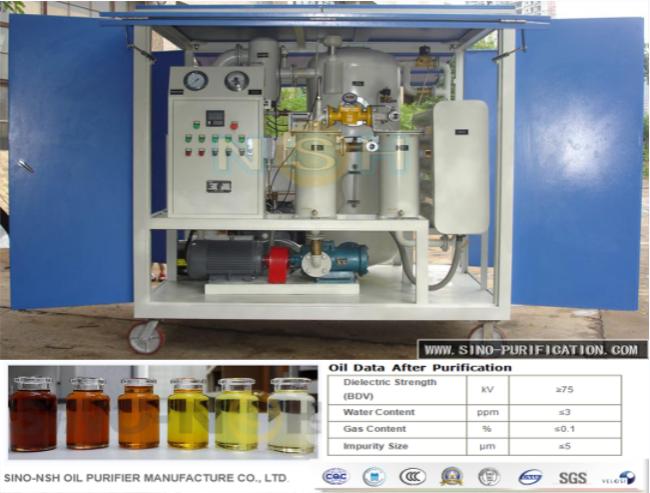

12000Liter/Hour Transformer Oil Purifier Double Stage Intelligent Mobile Vacuum 132KW
12000Liter/Hour Double Stage Intelligent Mobile Vacuum Transformer Oil Purifier
Product features
NSH VFD series is mainly used to improve the properties of insulation oil by removing trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly. It is suitable for purifying branded oil, insulating oil of high voltage and super high voltage transformer.
1. VDF has the characteristics of small, efficient and easy to move, especially suitable for live production. And can dry the moisture of power equipment, but also convenient to power equipment vacuum oil.
2. The structure adopts infrared night position automatic control device, system pressure automatic protection device and efficient degassing element; Easy to operate and safe.
working process
After the oil is inhaled to the heater through the crude filter, the temperature rises, and the initial oil and gas and oil and water are separated in the
first-stage vacuum separation tank, and then the oil and gas are separated completely in the second-stage vacuum separation tank. The water and gas are removed by the booster pump and vacuum pump, and the oil is output by the oil pump and fine filter.
Oil Data Before & After Oil Purification Machine
| PARAMETERS | UNITS | BEFORE OIL FILTRATION | AFTER OIL FILTRATION |
| Break Down Voltage | kV | 25 | ≥75 |
| Moisture Removal | ppm | 50-100 | Up to < 3-5 |
| Particle size (Filter Fineness) | Micron | Visible | < 1 |
| Gas Content | % Vol./Vol. | <10% | < 0.1% |
Company introduction
We come from Sino-NSH oil purifier Manufacture Company in China, which is a high-tech enterprise specializing in research, development, manufacturing and net oil equipment. Founded in 1992, our company has 30 years of professional manufacturing experience. We often cooperate with ABB,SIEMENS,TBEA, State Grid and other enterprises, and become the first choice of many distributors and end customers with excellent quality and service.
