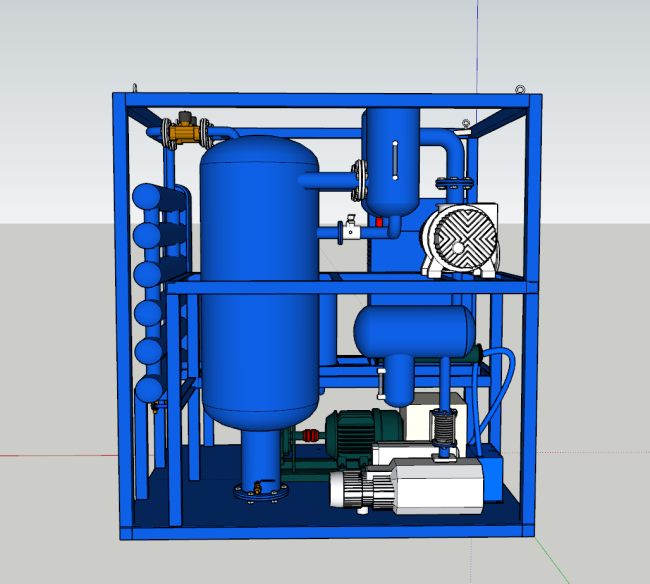

Mobile Double Stage Vacuum Insulation Oil Purifier / Transformer Oil Filtration Plant
Mobile Double Stage Vacuum Insulation Oil Purifier / Transformer Oil Filtration Plant
Transformer oil purifier Description
Our VFD Series vacuum insulation oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. It's also particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite.
Technical Specification of oil purifier machine
| Technical Specification | |||||||||
| Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
| Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
| Vacuum Range | Mpa | -0.092 ～ -0.099 | |||||||
| Working Pressure | Mpa | ≤0.2 | |||||||
| Max Vacuum Range | Pa | ≤50 | |||||||
| Temperature Range | ℃ | 45 ～ 65 | |||||||
| Breakdown Voltage | Kv | ≥75 | |||||||
| Impurity Size | μm | ≤5 | |||||||
| Dielectric Loss | Tg | ≤0.005 | |||||||
| Interfacial Tension | mn/m | ≥40 | |||||||
| Water Content | PPM | ≤4 | |||||||
| Gas Content | % | ≤0.1 | |||||||
| Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
| Working Noise | dB(A) | ≤72 | ≤78 | ||||||
| Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
| Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 | |
| Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 | |
| Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 | |
| Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
| width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 | |
| high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 | |
Advantages of oil purifier
- 1. Remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
2. Enhance the value of breakdown voltage greatly
3. Easy handling and maintenance
4. Inject oil into the transformers
5. Online work
6. Lower maintenance and replacement expenses
7. High efficiency and effectiveness
8. Small size, light weight, low noise
9. Various sizes and configurations (shield) available.
More Options of Oil Purifier
VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
