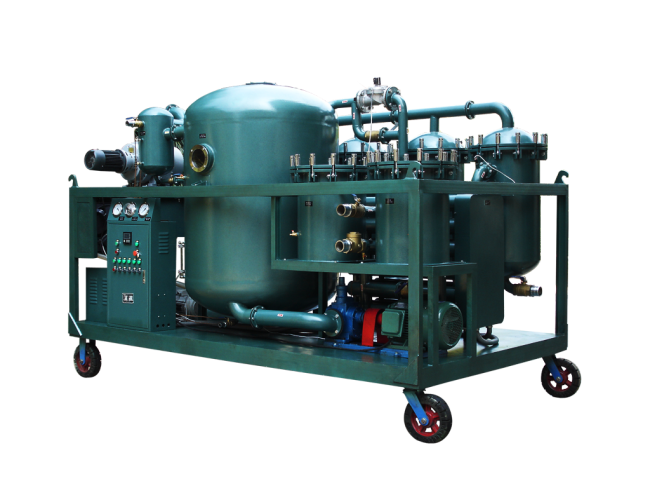

Steam Turbine Oil Purifier Emulsified Lube Oil Purifier 600 - 18000L/H Flow Rate
Steam Turbine Oil Emulsified Lube Oil Purifier/Vacuum Oil Dehydration System To Remove Dissolved Water
I. Turbine Oil Purifier Introduction
Turbine Oil Purifier Machine Equip with Vacuum Oil Dehydration System to Remove Dissolved Water is widely used for filtering turbine lubricating oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment.
III. Turbine Oil Purifier Features
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.
IV. Turbine Oil Purifier
1. Vacuum oil separators
2. Dewater, remove impurities
3. Vacuum oil filling
4. Double infrared liquid level auto control
V. Turbine Oil Purifier Technical Specification
| Item | Unit | TF-10 | TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | |
| Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
| Vacuum Range | Mpa | -0.06 ～ -0.096 | |||||||
| Working Pressure | Mpa | ≤0.3 | |||||||
| Clearness | NAS | ≤6 | |||||||
| Temperature Range | ℃ | 40 ～ 80 | |||||||
| Water Content | PPM | ≤100 | |||||||
| Impurity Size | μm | ≤5 | |||||||
| Demulification Number | Min | ＜15 | |||||||
| Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
| Working Noise | dB(A) | ≤70 | ≤75 | ||||||
| Heating Power | Kw | 9 | 18 | 30 | 36 | 72 | 90 | 120 | |
| Total Power | Kw | 11 | 20 | 34 | 41 | 78 | 96 | 126 | |
| Pipeline Diameter | mm | DN20 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | |
| Net Weight | Kg | 320 | 400 | 420 | 550 | 750 | 850 | 950 | |
| Size | length | mm | 1280 | 1300 | 1400 | 1550 | 1700 | 1800 | 1900 |
| width | mm | 750 | 900 | 1050 | 1100 | 1300 | 1400 | 1500 | |
| high | mm | 1450 | 1450 | 1600 | 1700 | 1850 | 1950 | 2050 | |
