Petroleum OD 40MM SS Turbine Oil Filtration Machine
oil purificaion oil teatment oil filtration tubine oil purifier

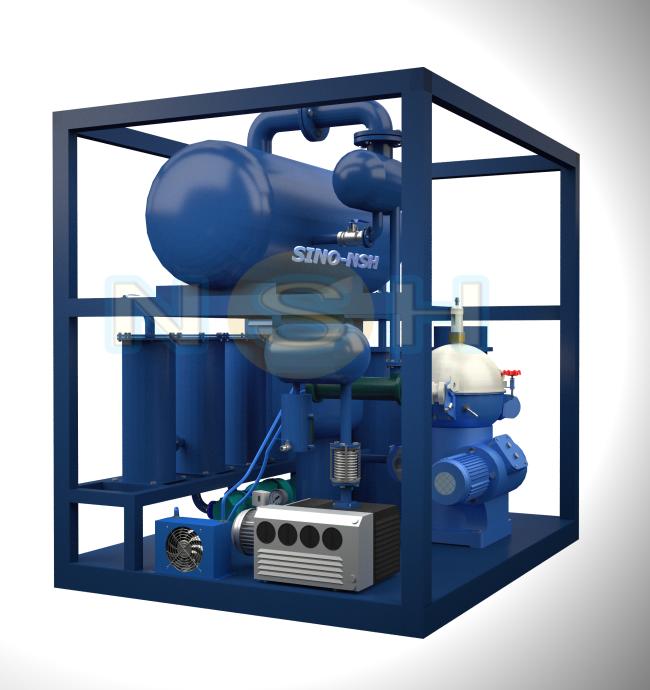

NSH-TF-E Explosion-Proof Turbine Oil Purifier
Sino-NSH-TF-E oil purifier is Explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, coal mining, metallurgy and other industries.
Sino-NSH-TF-E oil purifier adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected Explosion-proof type adapt to different danger level.
Any custom presentation option
1Explosion proof
2All stainless steel housings
3Skid base : base frame & 4 caster wheels
4Steel shield: metallic enclosure cover
5Single axle trailer: mounted on chassis with two pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
6Double axle trailer: mounted on chassis with four pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
7Separated operation room: with inspection window, air conditioning, operating desktop, storage space, etc. Any custom option.
Technical data
| Parameter | Value | ||
| TF-150 | TF-300 | ||
| Capacity, liters/hour | 9000 | 18000 | |
| Heating Power, kW | 72 | 120 | |
| Total Power, kW | 78 | 129 | |
| Power Supply | Fully customizable | ||
| Inlet Diameter, mm | 40 | 65 | |
| Outlet Diameter, mm | 40 | 65 | |
| Dimensions (without trailer) |
length, mm | 1850 | 2400 |
| width, mm | 1250 | 1700 | |
| height, mm | 1610 | 1760 | |
| Weight (without trailer), kg | 750 | 1500 | |
| Processed Oil Spec | Water Content, ppm | ≤ 100 | |
| Cleanliness (NAS 1638) | ≤ 6 | ||
| Filtration Fineness, um | ≤ 5 (or 1-5 as needed) | ||
| Emulsification value, min | ≤ 15 | ||
