High Efficiency Vacuum Insulation Oil Purifying Machine Double Stage
Double Stage High efficiency Vacuum Insulation Oil Purifier 380V 50HZ
I. Transformer Oil Purifier Description
VFD series oil purifier is specialized in purifying insulating oil ,branded oil,transformer oil of high voltage and super high voltage transformer by removing free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.
II.Transformer Oil Purifier Parameters
1. Flow Rate: 600 liters/hour ~ 18000 liters/hour
2. Moisture content after purification: less than 4 PPM
3. Gas content after purification: less than 0.1%
4. Breakdown voltage after purification: more than 75 KV
III. Transformer Oil Purifier Edges
1. High efficiency and effectiveness.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Online work.
5. Lower maintenance and replacement expenses.
6. Small size, light weight, low noise
7. Various sizes and configurations (shield) available.
IV. Technical Specification of Vacuum Oil Purifier
| Technical Specification | |||||||||
| Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
| Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
| Vacuum Range | Mpa | -0.092 ～ -0.099 | |||||||
| Working Pressure | Mpa | ≤0.2 | |||||||
| Max Vacuum Range | Pa | ≤50 | |||||||
| Temperature Range | ℃ | 45 ～ 65 | |||||||
| Breakdown Voltage | Kv | ≥75 | |||||||
| Impurity Size | μm | ≤5 | |||||||
| Dielectric Loss | Tg | ≤0.005 | |||||||
| Interfacial Tension | mn/m | ≥40 | |||||||
| Water Content | PPM | ≤4 | |||||||
| Gas Content | % | ≤0.1 | |||||||
| Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
| Working Noise | dB(A) | ≤72 | ≤78 | ||||||
| Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
| Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 | |
| Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 | |
| Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 | |
| Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
| width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 | |
| high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 | |
V. Available Style

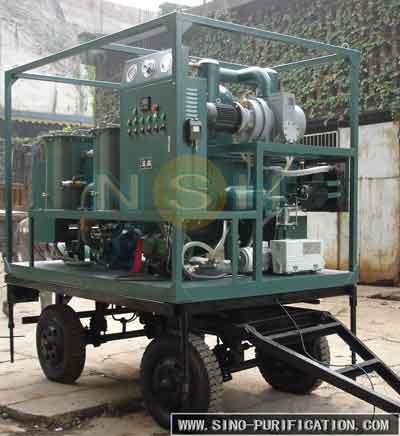

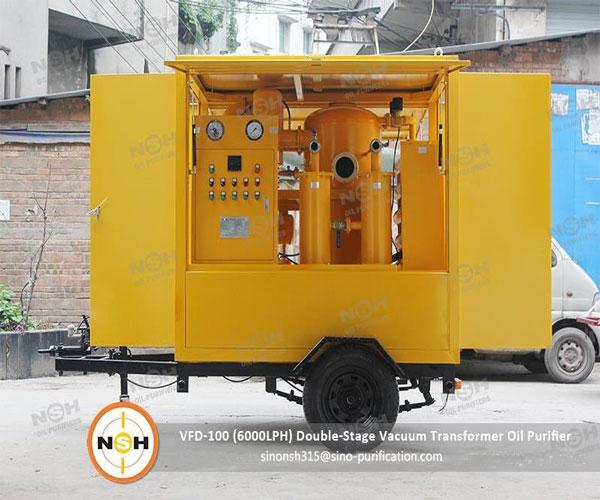

1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
