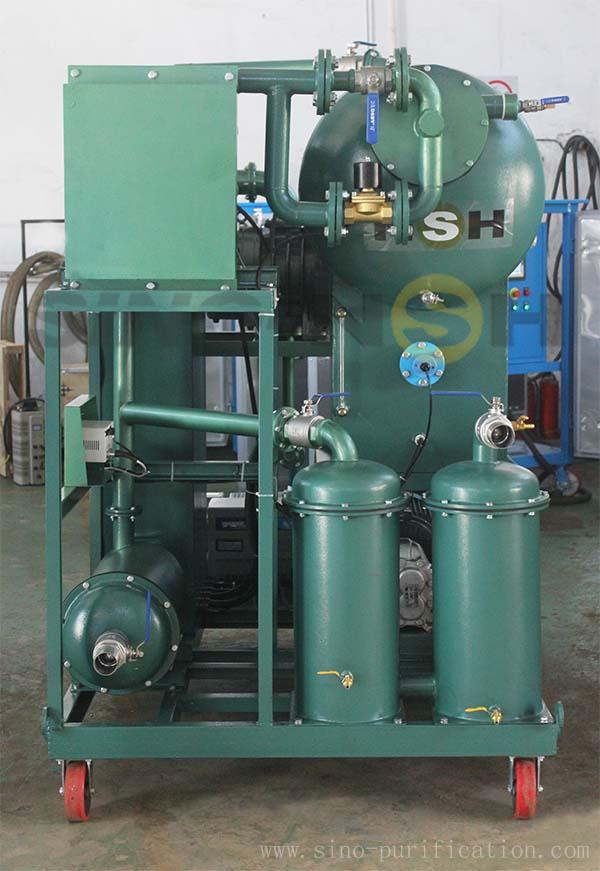

Dehydration Degassification 6000L/H Double-Stage Vacuum Transformer Oil Purifier
Dehydration Degassification 6000L/H Double-Stage Vacuum Transformer Oil Purifier
Product advantage
1)Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.
2)Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
3)Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.
4)ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies. ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value | ||||||
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
| Power supply | Fully Customizable | ||||||
| Maximum Vacuum Range,Pa | 0.06 | ||||||
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 |
1950 |
|
Order Tips:
If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.
Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:
| Parameters | Value | |||||||
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
| Capacity, liters/hour | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
| Heating Power, kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
| Total Power, kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
| Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
| Dielectric Strength, Kv | ≥75 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
| Gas Content, % | ≤0.1 | |||||||
69kW 6000L/h Vacuum Transformer Oil Purifier Usage:
1.It can be used for oil filtering and oil filling on site for all kinds of oil-immersed transformer oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker.
2. It can be used for hot oil cycle drying on site for the above equipment, especially for hot oil cycle drying on site for oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker
3. It can also be used for the regeneration and purification of mildly deteriorated transformer oil, so that its performance reaches the qualified oil standard.
4. It can also be used in power plant, power station, power company, transformation industry, metallurgy, petrochemical machinery, transportation and railway industries
+
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
