Newly Type 53kw With Dissolved Gas Meter Degassing Vacuum Turbine Oil Purifier
Newly Type 53kw With Dissolved Gas Meter Degassing Vacuum Turbine Oil Purifier
The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.

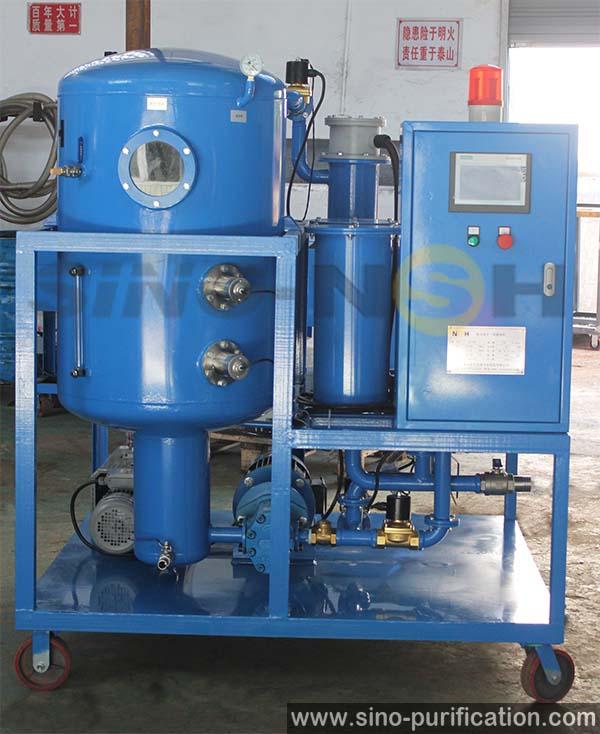

Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.
Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
| Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
| Dielectric Strength, Kv | ≥6 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
| Gas Content, % | ≤15 | |||||||
Optional:
1. Single axle trailer,double axle trailer,trailer with enclosure doors
Rode-worthy, 2 pneumatic tyres or 4 pneumatic tyres, pre-leg, two-eye, brake, rear lights,etc
2. Separated operation room
With inspection window, air conditioning, operation desktop, storage sapce, etc, any custom option
3. Explosion-proof
Tailored according to usage, i.e: Exd II BT4 or Exd II CT4
4. Full automatic
PLC, touch screen/text screen/mimic diagram, data monitoring.
5. Steel enclosure shield
Weather-proof, steel cover, horizontal/vertical doors, hydraulic supports
6. Aluminum enclosure shield
Weather-proof, aluminum cover, horizontal/vertical doors, hydraulic supports
7. Station with forklifts hole type
Thicken chassis, forklifts hole, hoisting eyes on top, etc.
8. Tailored
Available in kinds requirements
