Mine Industry 35kw Degassing Multifunctional Vacuum Lubrication Oil Purifier
Mine Industry 35kw Degassing Multifunctional Vacuum Lubrication Oil Purifier

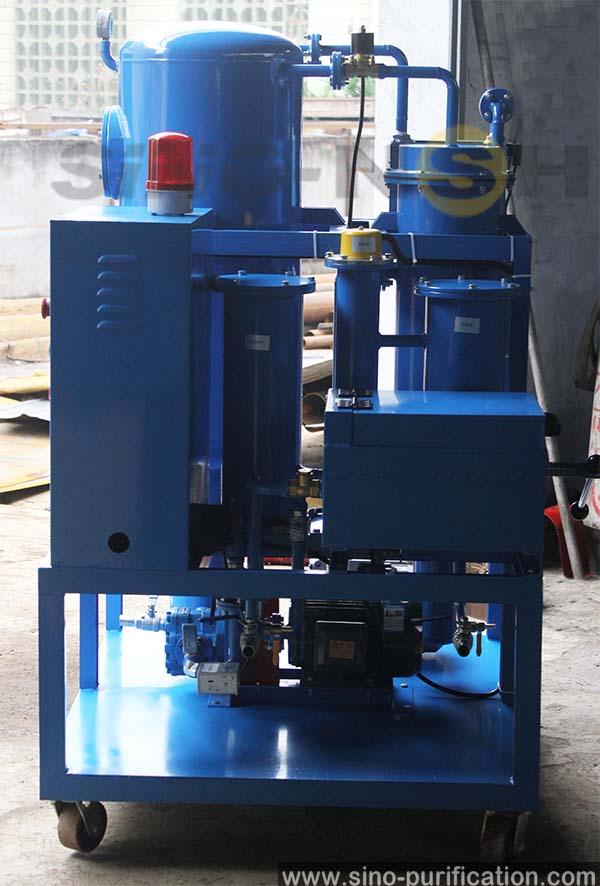

Multifunctional Vacuum Lubrication Oil Purifier Description:
1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.
Corollary Equipment-VR Vacuum Pump Set
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value | ||||||
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
| Power supply | Fully Customizable | ||||||
| Maximum Vacuum Range,Pa | 0.06 | ||||||
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 | |
Multifunctional Vacuum Lubrication Oil Purifier Function:
The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.
Multifunctional Vacuum Lubrication Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 | ||
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 | |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
| Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
| Dielectric Strength, Kv | ≤6 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
