7500L/H Oil Filter Recycling Machine Multifunctional Dehydration
Multifunctional Dehydration 7500L/H Protable Precision Lubrication Oil Purifier
Where do Contaminants Come from in Oil?
1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers
7500L/H Protable Precision Lubrication Oil Purifier Advantages:
1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. multi-usage
7500L/H Protable Precision Lubrication Oil Purifier Features:
1. Liquid level auto-controlling system
2. Auto pressure protection system
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.

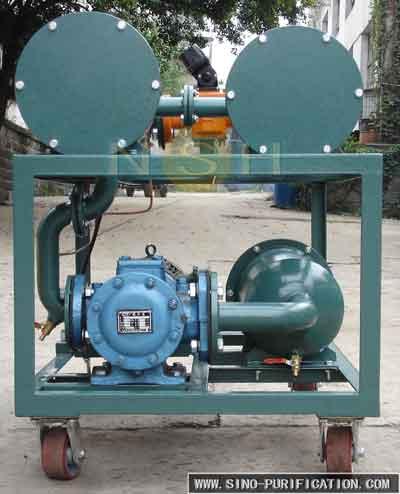

Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value | ||||||
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
| Power supply | Fully Customizable | ||||||
| Maximum Vacuum Range,Pa | 0.06 | ||||||
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 | |
7500L/H Protable Precision Lubrication Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
| Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
| Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
| Power supply | Fully Customizable | |||||||
| Height, m | ≥15 | |||||||
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
| Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
| Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Ps: we accept customization, welcome to inquiry!!!
