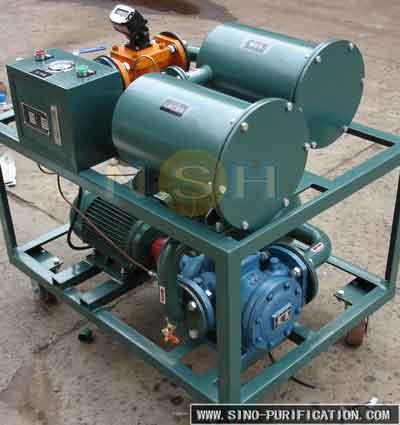

9000L/H Degassing Portable Oil Purifier 2.2kW For Power Plant
9000L/H Degassing Protable Precision Lubrication Oil Purifier For Power Plant
9000L/H Protable Precision Lubrication Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
9000L/H Protable Precision Lubrication Oil Purifier Usage:
1.It can be used for oil filtering and oil filling on site for all kinds of oil-immersed transformer oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker.
2. It can be used for hot oil cycle drying on site for the above equipment, especially for hot oil cycle drying on site for oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker
3. It can also be used for the regeneration and purification of mildly deteriorated transformer oil, so that its performance reaches the qualified oil standard.
4. It can also be used in power plant, power station, power company, transformation industry, metallurgy, petrochemical machinery, transportation and railway industries
Other Models Purifier Machines:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties. |
| LV Series: |
| LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
9000L/H Protable Precision Lubrication Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
| Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
| Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
| Power supply | Fully Customizable | |||||||
| Height, m | ≥15 | |||||||
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
| Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
| Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Ps: we accept customization, welcome to inquiry!!!
