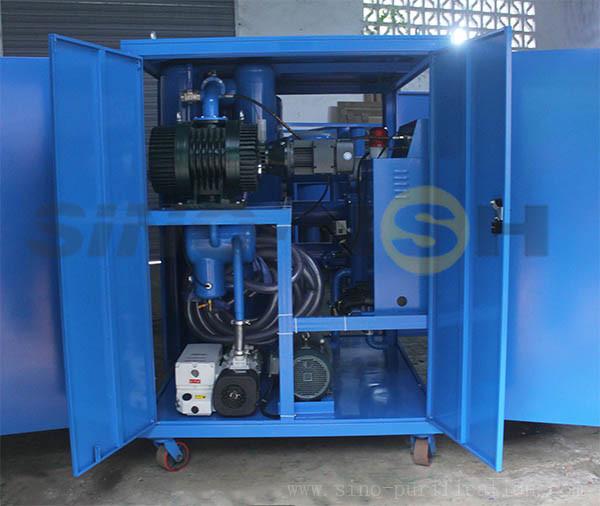

12000L/H Dehydration Degassing Double-Stage Vacuum Insulation Oil Purifier Model VFD

Product Introduction:

VFD series insulating oil double stage vacuum oil filter is designed innovatively by absorbing the advanced technology of similar products at home and abroad, and has excellent cost performance. In the oil treatment process and equipment performance in the leading level, set vacuum flash drying technology and "step by step" filtration technology in one. It has the advantages of high vacuum degree, fast oil filtration speed and oil quality protection. It can remove the water, impurities, hydrocarbons and other harmful gases in the oil more efficiently, improve the flash point and pressure strength of insulating oil. It is mainly used for the purification treatment of high voltage and ultra-high voltage power oil, and can increase the breakdown voltage of oil above 35KV at a time. The parallel USE of regenerative devices can accelerate acid removal, decolorization, reduce dielectric loss, acid value, and further improve the insulation strength of oil.

Product Advantages:

1)Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.

2)Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.

3)Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.

4)ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies. ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies.

Machine Specification:
