JJG 696-2015 60 Degree Angle Digital Gloss Meter CS-300A
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 days
Brand:
CHNSpec
Product Description
1.Product features
- Lithium ion battery charging saves users on usage costs while ensuring an ultra long battery life of 100000 times
- A single machine can store 5000 pieces of data, solving the problem of user data storage
- Adopting a 320 * 240 color screen, the data display is clear at a glance

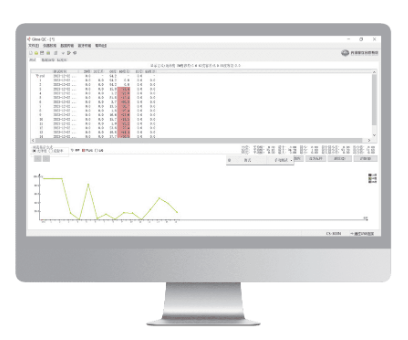

- Standard QC software, data can be stored on the omputer and reports can be exported
- Adopting a universal Type-C interface to reduce user procurement costs
- Meets the requirements of JJG 696-2015 glossmeter for more accurate data
2.Technical parameter
|
Product model |
CS-300A |
| Measurement angle | 60° |
| Measurement spot(mm) | 60°,9*15 |
| Measurement range | 60°:0-200GU |
|
Division value |
1GU |
| Measurement mode | Simple mode and statistical mode |
| Measurement accuracy | Meet the requirement of JJG 696-2015 gloss meter |
| Measurement time | Less than 1s |
|
Data storage |
5000 lines |
| Volume | 165*51*77mm(length*width*height) |
| Weight | About 400g |
| Language | Simplifed Chinese, English |
|
Battery power |
3000mAh lithium battery |
|
Battery life |
100,000 times when fully charged |
| Interface | Type-C |
|
Screen size |
2.4 inches(resolution 320*240) |
| Computer software | Support |
| Working temperature | 0-40°C |
| Humidity | Less than 85%, no condensation |
| Accessories | 5V/2A charging head, data cable, manual, USB flash drive (host computer software),calibration standard plate, third-party verification certificate |
| Application | Paints and inks, coatings, electroplating, plastic electronics, hardware and other fields |
