China FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera for sale

FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera

Price Negotiable

Price: negotiable

MOQ: 1

Delivery Time: 5-7days

Brand: CHNSpec

Product Description

FS-19S/19MY/19M/19X is an online high-speed short-wave infrared hyper-spectral camera specially launched by CHNSpec for the industrial sorting field. Its high frequency characteristics meet the requirements of the indus-trial field for scanning speed. Its sturdy structure and compact body also make its installation scenario more flexible.

Spectral range: 900-1700nm
Imaging speed: up to 7800fps
Spectral resolution: 8nm
Provide hyperspectral image processing software
Applicable to various environments

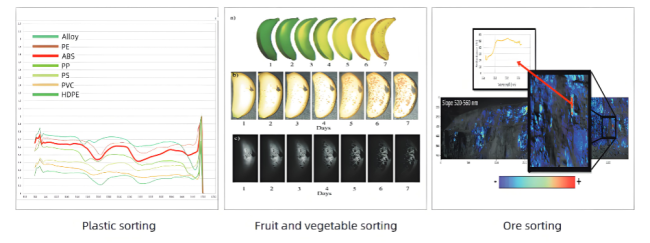

Application fields

Parameters

Product number	FS-19S	FS-19-MY	FS-19M	FS-19X
Lighting method	Passive lighting (excluding light source)
Spectral method	Transmission grating
Spectral range	900-1700nm
Number of spectral bands	200		150	100
Spectral resolution	＜8nm		＜9nm	＜13nm
Slit width	25um
Transmission efficiency	＞60%
Stray light	＜0.5%
Number of spatial pixels	640
Pixel size	15um
Lens focal length	Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses)
Field of view	62°(8mm focal length lens), 77°(6mm lens)
Imaging speed	724fps	8 spectral channels > 7800fps 16 spectral channels > 4900fps	2400fps	3500fps
Detector	InGaAs
SNR(Peak)	600/1
Camera output	Cameralink	GigE	Cameralink
Camera interface	C-Mount
Accessories	Lens, data cable, power supply, data acquisition card
Technical Support	SDK can be provided to support secondary development
ROI	Single region	Multiple regions	Single region
Size	LengthWidthHeight: 347mm122mm136mm
