Stainless Steel Dust Collector Parts Accessories Cage 2mm Thick Epoxy Surface
High quality dust collector organosilicone stainless steel filter bag cage
description:
1. Filter bag cage to be galvanized/silicon coating
2. Carbon or Stainless steel
3. ISO9001:2008 Certified
4. Any length or dia.
The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1. material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 4. economical maintenance(almost no Maintenance required) 5.prominent effect in removing dust from Filter by pulsing 6.easy to install 7.no ventury installation required | ||
| Standard Technical Data | |||
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, 3200,3600,4000, 4400,4800,5200, 5600,6000,7000 | |
| 125 | 130 | ||
| 147 | 152 | ||
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 5000 6000 | |
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Specifications for Filter cages:
Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages:
1. no corrosion
2. no damage
3. 3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5. prominent effect in removing dust from Filter by pulsing
6. easy to install
7. no ventury installation required

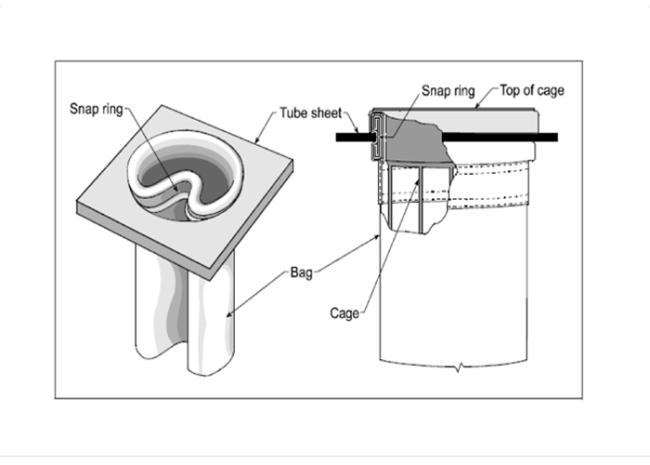

Filter bag cage installation diagram

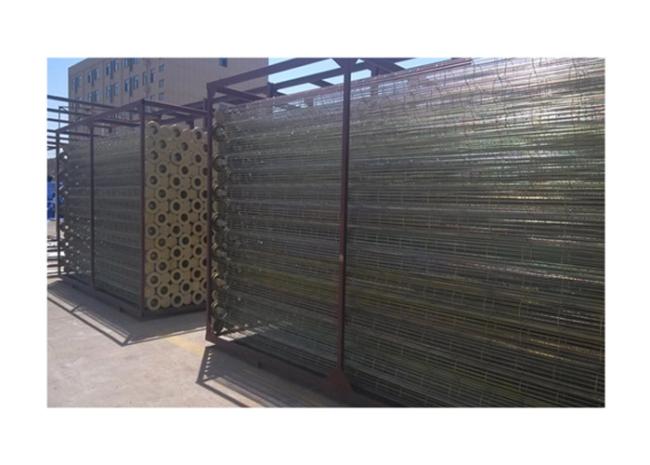

High quality dust collector organosilicone stainless steel filter bag cage package
