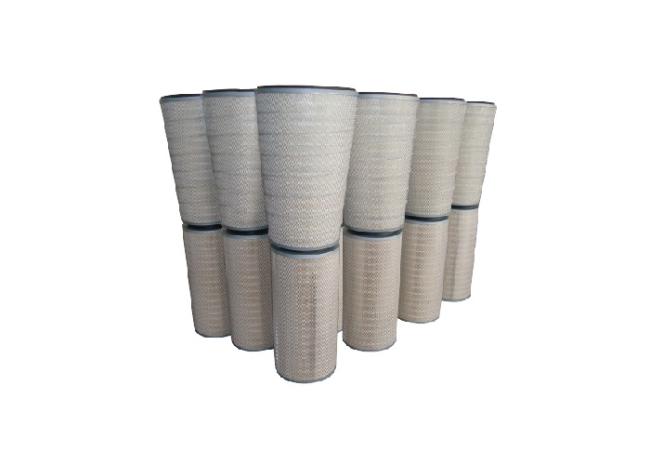

Hepa F9 Grade Gas Turbine Air Inlet Conical Cylindrical Filter Cartridge P191280 P191281 P191177 P191178

Hepa F9 Grade Gas Turbine Air Inlet Conical Cylindrical Filter Cartridge​ P191280 P191281 P191177 P191178 Description:

1. Filter Material
Synthetic Fiber

80% Cellulose+20%Synthetic

Nano Fiber

2. Performance description:

A. Wider pleat width
B. High filtration efficiency 99.99% at 0.5 M
C. Ahlstrom material
D. Large air flow
E. Top open, bottom open/ bottom close with deflating bolt hole
F. Galvanized stainless metal configuration
G. Rubber seal

3.Dimension:

Top cap: OD445mm*ID330mm

Bottom cap: OD324mm*ID213mm * H660mm

4. Application Field:
The air intake filtration of gas turbines of ge, solar, Siemens, alstom, misubishi

5.To replace :
P191280, P191281
P191177, P191178
P191107,P191033

6.Features Of Standard Structure:
Composite fiber/composite fiber + glass fiber hybrid filter material
We have special gas turbine filter materials for different working conditions.

7.Product description:
1.Using the imported filter paper from United States, wood pulp fiber 80%+ polyester fiber 20%;
2.Can be better applied to reverse pulse blowing in the high humidity situation;
3.Large area design, guarantee the filtering air flow;
4.Inside and outside metal support, anti-rust galvanized end cover;
5.Special elastic rubber sealing ring.

Gas Turbine Air Intake Filter cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.

8.Features:
(1) Air Intake Cartridges for gas turbines and Air compressors are modern and Reliable.
(2) The variety and range of materials and specifications make it possible to find suitable filter media for any Environmental conditions.
(3) The quality of the materials used ensure high performance standards.

9.Size Details

Hepa F9 Grade Gas Turbine Air Inlet Conical Cylindrical Filter Cartridge P191280 P191281 P191177 P191178
