5um,0.5um,0.2um,2um，Imported PTFE Coated Polyester Dust Filter Cartridge Oil And Water Repellent
OEM dust collector filter element Welding fume filter cartridge Bolt bottom filter cartridgeDescriptions:
Product Features For oem dust collector filter element :
Dust filter cartridge
1) Imported PTFE coated polyester filter media, small pore size, high filtration precision.
2) Smooth filter media surface,not sticky.
3) Excellent chemical resistance.
4) Electro-galvanized / stainless steel cover, central skeleton.
5) Professional sealing obturator elastic neoprene.
6) Operating temperature ≤ 135 ° C.
Specification:
| Model | O.D | I.D | Length | Filtration surface(m2) |
| 145*500 | Φ145mm | Φ80mm | 500mm | 1.25m2 |
| 145*600 | Φ145mm | Φ80mm | 600mm | 1.5m2 |
Dust filter cartridge
Used in Amano PiE-30SDN/30SD,PiE-45SDN/45SD,PiE-60DN,PiE-75DN,PiE-120DN,PiE-150DN dust collectors.
|
Product Name
|
AIR Dust Filter Cartridge With 3 Bolts
|
|
Material
|
Polyester
|
|
End Caps
|
Galvanized
|
|
Inner Core
|
Galvanized
|
|
OD
|
150 mm
|
|
ID
|
91 mm
|
|
Height
|
500 mm
|
|
Used
|
Dust collector
|
Use of the venue :
Applicable to welding fumes, mechanical processing, pharmaceutical, cement industry and viscous media.
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

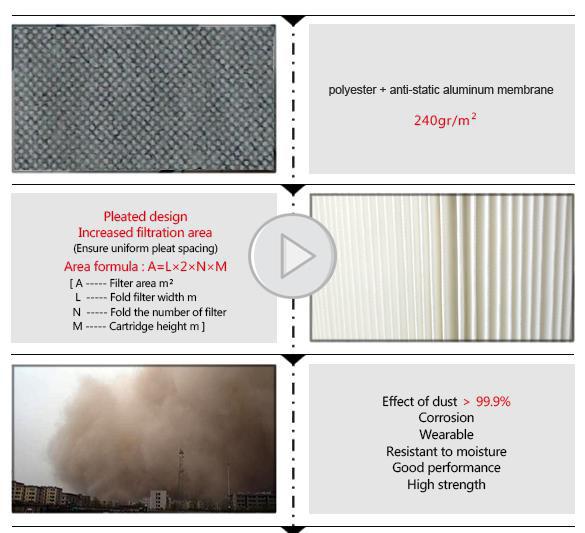

Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement
Filter Material:
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
Packaging
| Selling Units: | Single item |
| Single package size: | 19X19X56 cm |
| Single gross weight: | 2.89 KG |
| Package Type: | Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost) We can also meet our customer's special requirement |
Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
https://youtu.be/IV795B_37vU
https://www.youtube.com/watch?v=h7xUgYrQosA

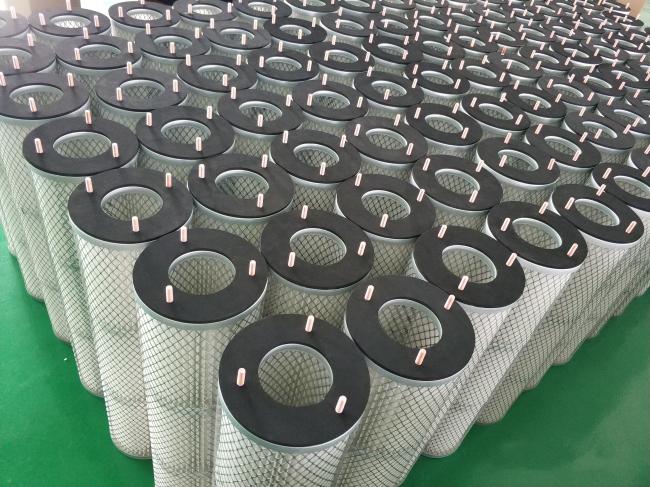

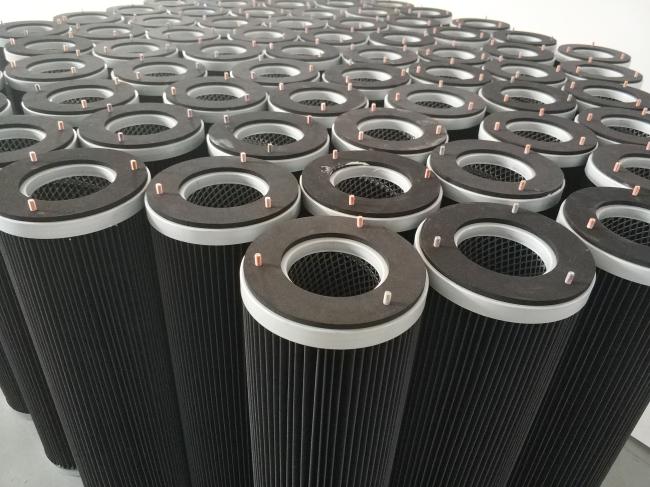

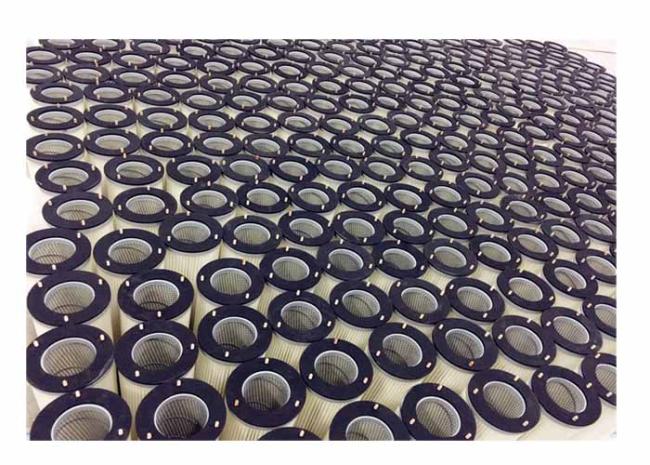

oem dust collector filter element Welding fume filter cartridge Bolt bottom filter cartridge show:

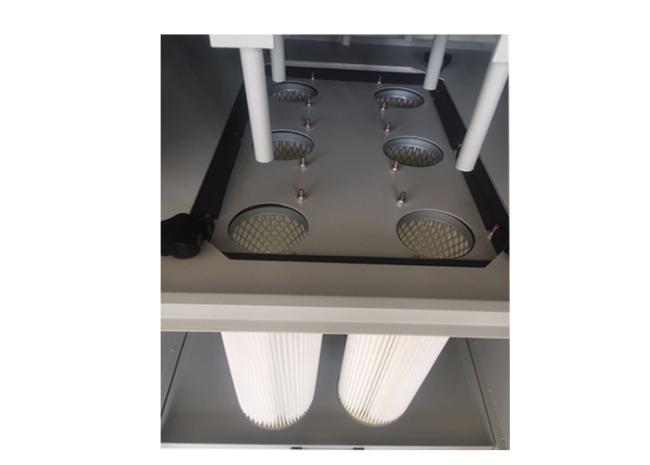

oem dust collector filter element Welding fume filter cartridge Bolt bottom filter cartridge installation:
