5um,0.5um,2um,0.2um Polyester Spunbond Dust Filter Cartridge Galvanized Steel Inner Core
Polyester Spunbond Pleated Filter Cartridge Threaded cylindrical filter cartridge Description:
Professional hepa air filter:
Product Features of Dust Collector Cylindrical Thread Filter :
Applicable to dusting spray, sand blasting, pigment industry, wood processing.
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Electro-galvanized / stainless steel cover, central skeleton.
6) Professional sealing obturator elastic neoprene.
7) Good filter material stiffness,can be repeated washed.
8) Operating temperature ≤ 135 ° C.
9) Greatly increase the effective filtration area.
10) Ensure a low steady differential pressure, improve the circulation of air flow.
11) Small filter cartridge element, easy to install.
12) Especially suitable for large dust concentration industry.
Dust filter cartridge
| Structure | Cylindrical Thread Cartridge |
| Dimension | (OD)120*(ID)72*(H)913 mm |
| Filter Material | Polyester |
| Efficiency | 100% (Particles ≥5μm) |
| Bottom Cap | Galvanized with internal thread |
| Inner Core | Galvanized diamond mesh |
| Outer straps | Glued |
| Gasket | Needle felt |
| MOQ |
NO MOQ . But advice full container to save cost. 20GP FCL: 1536 sets 40GP FCL: 3072 sets 40HQ FCL: 3648 sets |
| Loading Port | Shanghai |
| Lead Time | Around 20 days for 20GP container |
| Payment | T/T ; West Union ; Paypal |
| Shipment |
By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door |
| Package | Carton |
| Max Capacity | Around 1000 pcs per week |
| Structure | Polyester Spunbond Pleated Filter Cartridge Threaded cylindrical filter cartridge | ||
| Dimension | (OD)120*(ID)72*H913 | ||
| Pleats Number | 100 Pleats | ||
| MOQ |
NO MOQ . But advice full container to save cost. 20GP FCL: 609 pieces 40GP FCL: 1250 pieces 40HQ FCL: 1449 pieces |
||
| Loading Port | Shanghai | ||
| Lead Time | Around 14 days for 20GP container | ||
| Payment | T/T ; West Union ; Paypal | ||
| Shipment |
By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door |
||
| Package |
|
||
| Max Capacity | Around 1000 pcs per week | ||
Product Features of Flat Cell Filters :
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Electro-galvanized / stainless steel cover, central skeleton.
6) Professional sealing obturator elastic neoprene.
7) Good filter material stiffness,can be repeated washed.
8) Operating temperature ≤ 135 ° C.
9) Greatly increase the effective filtration area.
10) Ensure a low steady differential pressure, improve the circulation of air flow.
11) Small filter cartridge element, easy to install.
12) Especially suitable for large dust concentration industry.

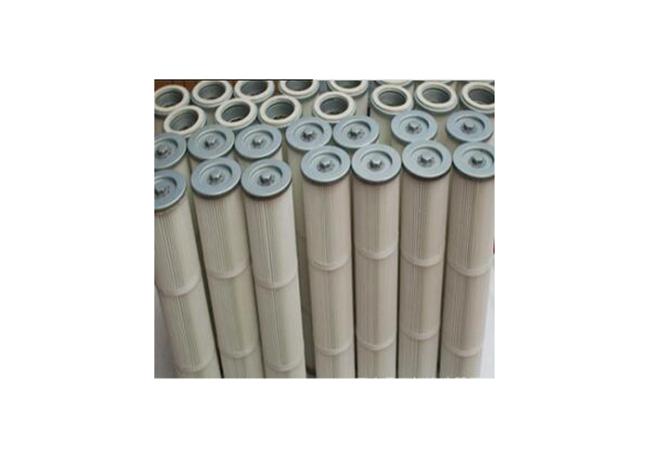

Polyester Spunbond Pleated Filter Cartridge Threaded cylindrical filter cartridge show:
