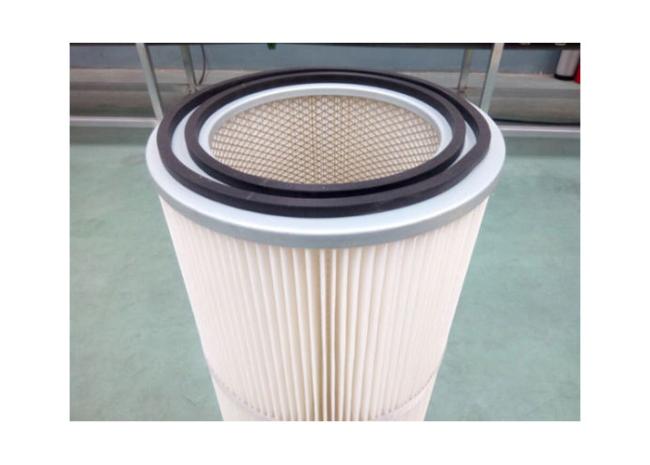

5um,0.5um,2um,0.2um Washable Pleated Rubber Seal Dust Extractor Filter Cartridges
Square plate dust air filter cartridge Square Flange Top Air Dust Filter Cartridge description:
It uses high-quality filter material production with high filtration efficiency,reasonable structure design,easy to clean dust.it could separate of the dust in the air,reduce environmental pollution.it has high collection efficiency,easy cleaning,large filtration area and so on merits.
Product Parameter
Dust filter cartridge
| Cartridge model | Outer diameter mm | Inner diameter mm | Height mm |
| 3266 | 324 | 213 | 660 |
| 3566 | 352 | 241 | 660 |
| 3275 | 324 | 213 | 750 |
| 3288 | 324 | 213 | 880 |
| 3290 | 324 | 213 | 915 |
Filter Specification:
|
Model |
Shape |
OD(mm) |
ID(mm) |
Length(mm) |
Filter Area(M2) |
|
32600
|
Cylindrical |
324 |
213 |
600(22) |
18 |
|
3266
|
Cylindrical |
324 |
213 |
660(26") |
21 |
|
32700
|
Cylindrical |
324 |
213 |
700(27.5") |
22.3 |
|
32865
|
Cylindrical |
324 |
213 |
865(34) |
25 |
|
408F
|
Cylindrical |
408 |
213 |
735(29") |
23.5 |
|
408F
|
Cylindrical |
408 |
293 |
559(22") |
21.6 |
|
32865
|
Cylindrical |
324 |
213 |
865(34") |
25 |
|
445C
|
Conical |
445-324 |
330-213 |
660(26") |
23.3 |
|
324C
|
Conical |
324-250 |
213-134 |
660(26") |
16.4 |
|
408C
|
Conical |
408-324 |
293-213 |
711(28") |
23 |
|
408C
|
Conical |
408-324 |
293-213 |
925(36.6") |
34.3 |
|
406/324
|
Cylindrical |
324Top cap size406×362 |
213 |
668(26.3) |
22 |
|
406/324
|
Cylindrical |
324Top cap size406×362 |
213 |
875(34.5") |
28 |
1. the gas turbine
2.compressor, sandblasting
3.tobacco wiring
4.fly ash, floating ash.
Media Types are :
1. Polyester
2. Antistatic Polyester (Carbon, Steel)
3. Polyphenylene Sulphide
4. Aramid
5. PTFE
Product Descriptions:
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Features:
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
https://www.youtube.com/watch?v=aUaBDyIUt10
https://youtu.be/IV795B_37vU
Washable pleated polyester cylinder dust collection air filter cartridge 406*362*324 Show:
