Glass Fiber Flat Home Hvac Filters For High Humidity Mill - Finished Aluminium Frame
Glass Fiber Flat Panel cardboard frame G3 G4 air condition Glass Fiber Medical Flat Air Filter description:
Applications: coarse particle filtration Type: flat panel filter
Frame: cardboard or galvanized steel Filter media: glass fiber mat
Grids: aluminium mesh or galvanized steel mesh EN 779 Class: G3－G4
Average arrestance: 84%－94%(ASHRAE 52.1-1992) MERV: MERV 5－8(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1 UL 900 Standard: CLASS 2
Final pressure drop: (recommender) 200Pa -(maximum)250Pa
Max. air flow rate: 125% of nominal air flow rate
Max. operating temperature: 100℃
Max. relative humidity: 100%
Air conditional filters
| Class | Arrestance | Dimensions | Filtering surface (m2) |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
| Length (mm) |
Height (mm) |
Depth (mm) |
|||||
| G3 | 80-86% | 592 | 592 | 50 | 0.36 | 3400 | 60 |
| G3 | 80-86% | 592 | 292 | 50 | 0.18 | 1700 | 60 |
| G4 | 90-94% | 592 | 592 | 50 | 0.36 | 3400 | 75 |
| G4 | 90-94% | 592 | 292 | 50 | 0.18 | 1700 | 75 |
| G4 | 90-94% | 592 | 592 | 100 | 0.36 | 3400 | 80 |
| G4 | 90-94% | 592 | 292 | 100 | 0.18 | 1700 | 80 |
Air conditional filters
|
Model Eff.
|
Dimensions (mm) W×H×D |
Rated Air Flow M3/h |
Initial Resistance (pa) |
Efficiency (rank) % EN779 |
Material | |||
| Frame |
Filter Media |
Protective nets | ||||||
|
MERV 8-11
G3-F5 |
592*592*25 595*595*46 595*495*46 595*295*46 495*495*46 295*295*46 |
2000 3200 2700 1600 2200 800 |
45 |
90
|
MERV 8 |
Cardboard Aluminum alloy Galvanized sheet |
Fiberglass |
Cardboard framed Galvanized mesh/stainless steel |
Glass fiber filament material produced by TianHao Company learns from foreign advanced technology. BV type glass fiber plate filter made of this material has features of high temperature resistance, high efficiency, low resistance, light weight, sound deadening and anti-corrosion. It overthrows traditional glass spun silk's shortness of easy hair removal and dust leakage. Filter material can be made into panel type and pleat type. It's the ideal filter for modern hot-air drying room and high temperature environment. It also can be used as ventilation filter of painting equipment which can efficiently intercept mist and realize environmental production
Air conditional filters
Advantages
l Suitable for high humidity conditions
l Replaceable filter media
l Progressively built-up thermal bonded polyester fibre

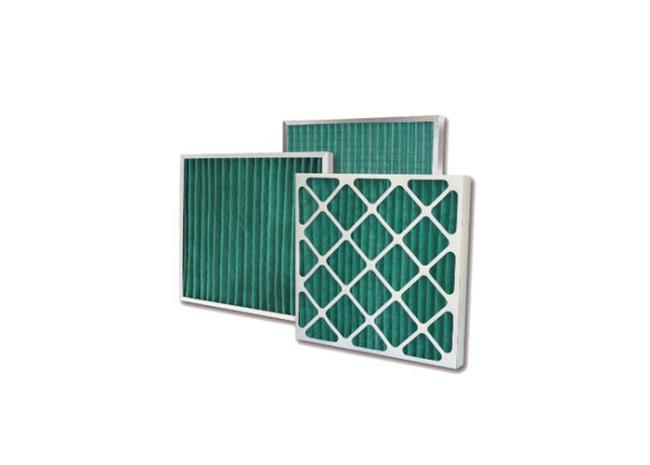

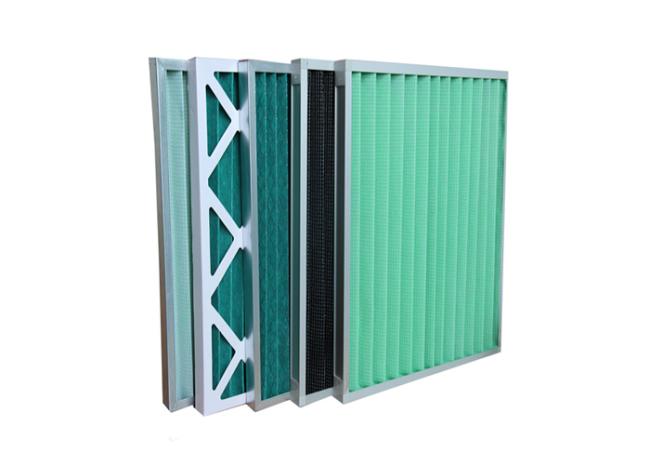

Glass Fiber Flat Panel cardboard frame G3 G4 air condition Glass Fiber Medical Flat Air Filter Show:
