Non - Frame Air Conditioner Filters 0.5 Micron Pre Filtration Leak - Free Welding Edge

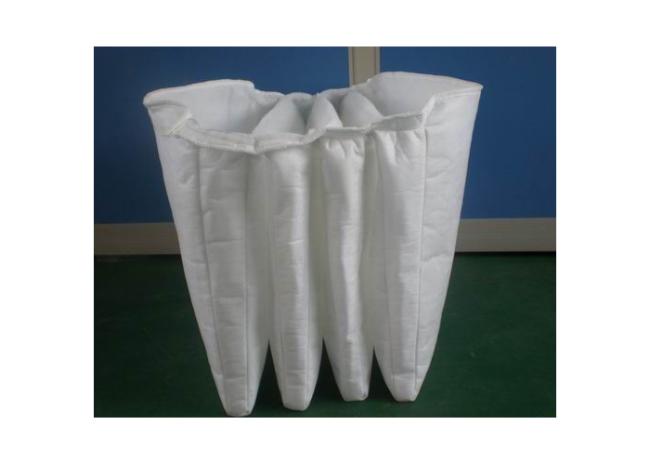

Self-supported Non-frame Pocket filer Non-frame Self-supported Bag filters 0.5 micron filters description:
Applications: coarse and fine particle filtration Type: multi-pocket filter
Frame: 5-6 cm media fringe Filter media: progressively structured synthetic fiber
Gasket: EVA or none for plastic frame EN 779 Class: G3－F8
Average arrestance: 80%－99%(ASHRAE 52.1-1992) MERV: MERV 5－14(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1 UL 900 Standard: CLASS 2
Final pressure drop: (recommender) 250Pa(G3-F5)－400Pa(F6-F8)
Max. air flow rate: 125% of nominal air flow rate Max. operating temperature: 100℃
Max. relative humidity: 100%
Air conditional filters
| Class | Dust Spot Efficiency |
Dimensions | Filtering surface (m2) |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
| Length (mm) |
Height (mm) |
Depth (mm) |
|||||
| G3 | ≤20% | 592 | 592 | 600 | 4.68 | 3400 | 25 |
| G4 | 30-40% | 592 | 592 | 600 | 4.68 | 4250 | 45 |
| F5 | 40-60% | 592 | 592 | 600 | 4.68 | 4250 | 55 |
| F6 | 60-80% | 592 | 592 | 600 | 6.20 | 3400 | 60 |
| F7 | 80-90% | 592 | 592 | 600 | 6.20 | 3400 | 90 |
| F8/9 | 90-95% | 592 | 592 | 600 | 6.20 | 3400 | 120 |
Filters are used in main and fine air filtration units for general ventilation and air conditioning equipment where restricted space requirements are a limiting factor for offices, shopping centers, schools, theatres, industrial plants, food processing facilities, laboratories etc. Also as pre-filter and medium filter in supply air units for car paint spray cabins as well as protective filter for fine-, super-fine and HEPA filtration systems.
The filter medium is constructed from selected high performance fibers in a progressive density multi-layering technique to ensure high depth loading with optimal lowest pressure drop performance. This result in long filter life and usage, high fractional efficiency combined with relatively high dust loading and low energy and maintenance costs.

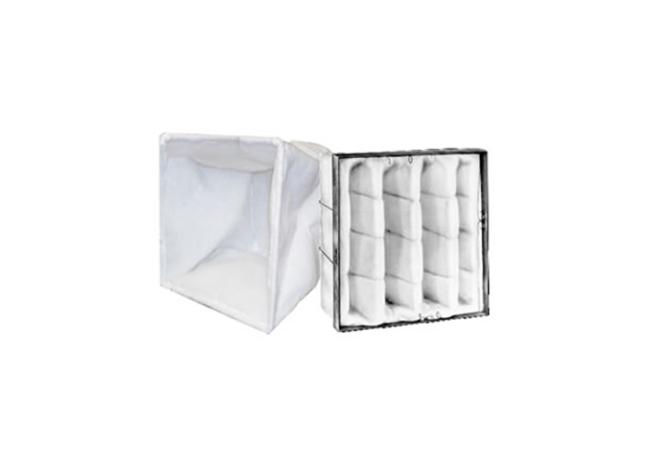

The pocket media are inherently rigid. The bag edge is welded by national patented high-frequency technology. The welding edge is really leak-free when compare to the sewing way.With a welded rib construction to form pockets with the highest possible functional security in even the most brutal air-pressure and high dust-laden environments.
Applications: filtration coarse and fine particles in air handling units and air ventilation systems
Frame: galvanized steel
Filter media: progressively structured synthetic fiber with 10-12mm thickness
Gasket: EVA foam
EN 779 class: G3-F6
Average arrestance: 80-98%
Final pressure drop: G3-G4 (recommended) 200-250 Pa
F5-F6 (recommended) 300-350 Pa
Maximum air flow rate: 125% of nominal air flow rate
Max. operating temperature: 100OC
Max. relative humidity: 100% RH
