High Dust Concentration Panel Air Filter Washable , Polyester Filter Cartridge Convenient Installation
High dust concentration plants flat panel air filter cartridge Flat Filter elements description:
FILTER MEDIA
| DESCRIPTION | SPECIFICATION | CHEMICAL PROPERTIES | |||||||
| Material | Post-processing |
Weight gram/m2 |
Thickness mm |
Max Temp. °C |
Perme-ability |
Oil water proof |
Water proof |
Acid | Alkali |
| 20%polyester+80%cellulose | 130 | 0.64 | 80 | ** | * | * | * | * | |
| 15%polyester+85%cellulose | 124 | 0.7 | 80 | ** | * | * | * | * | |
| 100%cellulose | 118 | 0.79 | 80 | ** | - | - | * | * | |
| 15%polyester+85%cellulose | Nano flame retardant | 137 | 0.79 | 80 | *** | *** | * | * | * |
| 15%polyester+85%cellulose | Nano | 132 | 0.84 | 80 | *** | ** | * | * | * |
| 100%polyester | 240 | 0.75 | 120 | ** | ** | * | * | * | |
| 100%polyester | 260 | 0.61 | 120 | ** | ** | * | ** | * | |
| 100%polyester | Anti-static | 260 | 0.61 | 120 | ** | ** | - | ** | * |
| 100%polyester | Flame-retardant | 260 | 0.61 | 120 | ** | ** | ** | ** | * |
| 100%polyester | Oil,water proof | 260 | 0.61 | 120 | *** | *** | *** | ** | * |
| 100%polyester | PTFE Membrane | 240 | 0.60 | 120 | * | - | *** | ** | ** |
| 100%polyester | PTFE Membrane | 260 | 0.68 | 120 | * | - | *** | ** | ** |
| 100%polyester | PTFE Membrane FR | 260 | 0.62 | 120 | * | - | *** | ** | ** |
| 100%polyester | PTFE Membrane | 270 | 0.83 | 135 | * | - | *** | ** | ** |
| 100%polyester | Anti-static PTFE Membrane | 260 | 1.01 | 135 | * | - | *** | ** | ** |
| 100%polyester | New PTFE Membrane | 135 | 0.58 | 110 | * | - | *** | ** | ** |
- No, * Ordinary, ** Good, *** Very good
Performance Description of Flat Filter Element
Flat filter element makes it possible to design small compact filter system and still get the optimal
air filtration. Air filtration can be further optimized by selecting the right filter media for your specific
dust type. We have a number of quality filter media to ensure maximum options when it comes to
removing your particular dust type.
Features of Flat Filter Element
- Filter Area: Increased by 200% filter area
- Pleat Design: Easy to clean the dust
- Strong burst resistance
-
Convenient in installation and discharge
-
Washable
-
Make the best use of the filter area

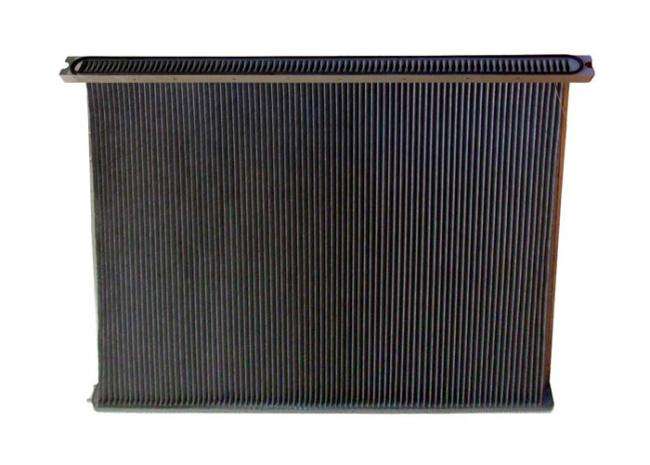

High dust concentration plants flat panel air filter cartridge Flat Filter elements Show:
