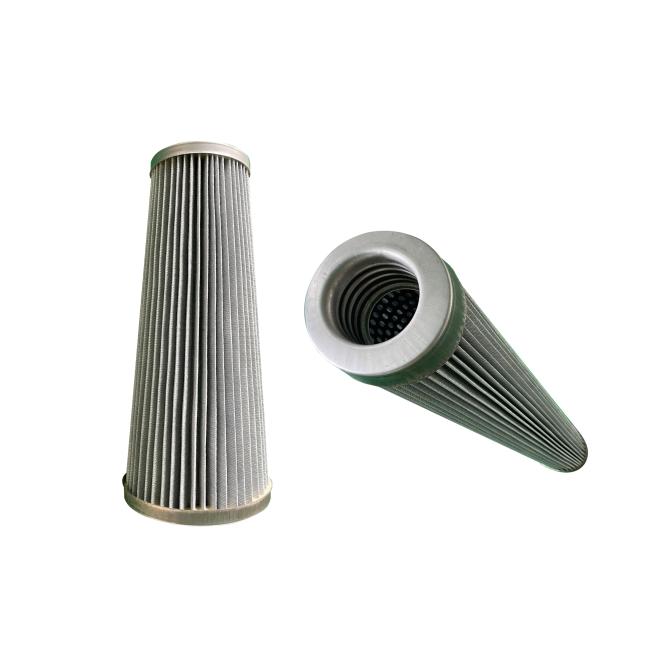

2m 5um 0.5um Conical Cartridge Dust Collector Filters
Price:
negotiation
MOQ:
negotiation
Delivery Time:
around 2 weeks upon receipt signed&stamped PO
Brand:
AIR
Product Description
here are many advantages of conical filter cartridge compared with the conventional cylindrical design
It includes -
a.High capacity
b.Better dust sedimentation
c.More efficient cleaning
d.Less flow resistance
The conical design of the cartridge results in a higher reduction of the upstream velocity at the bottom end cap region. This result in the element being clean off more efficiently due to better settlement, especially when use to filter light dust.
Specification:
| Model | Filter area | Length | Cartridge (2mLength) | Media Weight | Air permeability | Media type |
| P1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| P2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| D1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| D2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| F1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| F2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| N1 | 2.3m2 | 1m | 190℃ | 500g/m2 | 7m3/m2/min 12mm WC | Nomex |
| N2 | 4.6m2 | 2m | 190℃ | 500g/m2 | 12m3/m2/min 12.7mm WC | Nomex |
