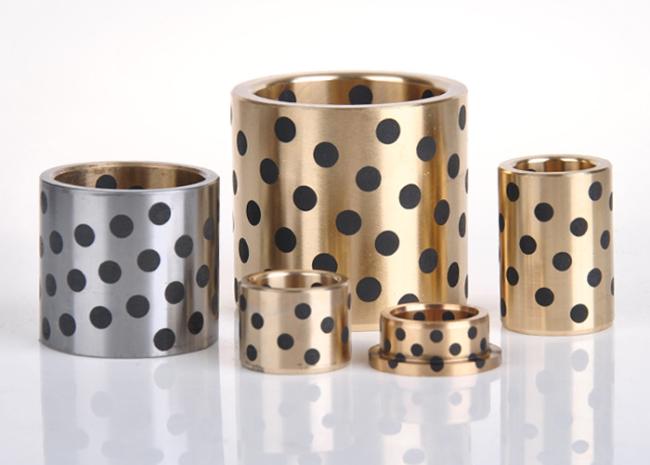

Solid Lubricant Bronze Bushing Lubrication / JDB Oilless Self Lube Bearings
Solid Lubricant Bronze Bushing Lubrication / JDB Oilless Self Lube Bearings
Product Specification
| Product Name |
Self Lubricating Bronze Bushings |
|---|---|
| Material Details |
ZCuZn25Al6Fe3Mn3 |
| Max Sliding Speed V |
15 m/min |
| Friction Coefficient |
Oil Lubrication 0.03 ; Dry Friction 0.16 |
| Max PV Value Limit |
200 N/mm² ·m/min |
| Elongation |
＞12% |
| Max Move Load |
100 N/mm² |
| All Type |
Sleeve, Flange, Washer, Plate |
| Features |
Good Chemical Stability |
| Application Place |
General (Atmosphere) |
Product Description
SF-52 Solid-lubricat inlaid bronze Bushings use high grade metal alloys as their base material, inlaid graphite and grease during the process of friction, It will release solidlubricant and lubricant oil autometically.
Bronze base Self Lubricating Bushings uses high-strength copper alloy as the base material, and according to the working conditions, holes are drilled in the working face and filled with solid lubricant. The high-strength copper alloy provides high load-bearing capacity and the solid lubricant can A lower friction pair is formed. Under the condition of dry friction, we design a layer of pre-lubricating film on the bearing surface to ensure that the solid lubricant can be transferred to the pair of parts and form an effective solid lubricant film in the shortest time.
Product Application
The products are windely used in injection molding, automobile mold, engineering machine, food machinery and water turbines, etc.
Bronze self-lubricating bushing can be used in dry friction, high temperature, high pressure, corrosive environment, moisture and chemical affected occasions. They are widely used in automobile production lines, hydraulic engineering, reservoir gates, injection molding machines, continuous casting machines, metallurgical machinery, and mining machinery, turbine generators, hydroelectric generators and other fields.
Product Advantages
1, Oilless Dry operation.
2, Can be Performed well with high load and low speed.
3, Rreciprocating motion, wagging motion, start and stop frequently and difficulty for keeping oil surface. It still may play advantageous of wear-resistance.
4, Excellent chemical resistance and low wear.
5, Flexible, simple, convenient and abundant designing of standard, can be choosed by standard axes.
Competitive Advantages
1. We provide products with good quality at best price for clients in quick delivery.
2. 100% custom pass guaranteed.
3. Always immediate and best after-sale service.
4. Flexible and negotiable payment terms.
5. Our clients distribute widely, like in UK, France, Germany, Norway, Poland, Finland, Spain, Russia,USA, Canada, Brazil, Mexico, Australia, Japan, Thailand, Indonesia, Uruguay and many other countries.
Packaging Delivery
Inner Packing: 100 Pcs per Plastic Anti-Rust Bag
Outer Packing: 1000-2000 Pcs per Cardboard Box.
Shipment Packing: 20 Cartons per Wooden Case or Pallet.
Delivery Time: General 10-20 Work Days, (Depends on the Amount)
Delivery Term: FOB, CFR, CIF, EXW
