High Efficiency Wire Straightening And Cutting Machine 0.8mm - 4.2mm Wire Dia

Price Negotiable
Price: Negotiable
MOQ: one set
Delivery Time: 15 work days
Product Description

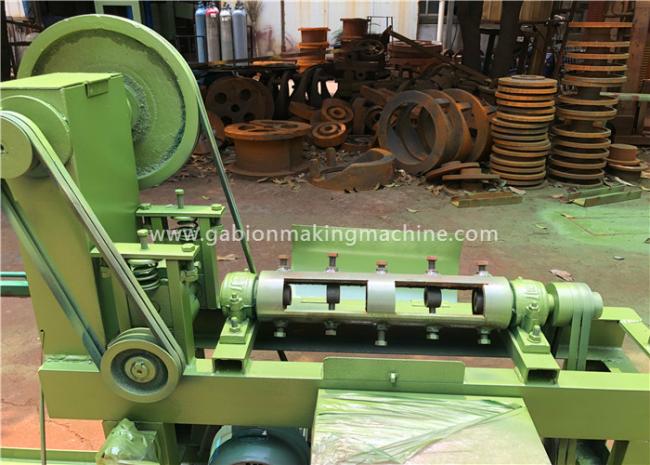

Hige Efficiency Wire Straightening And Cutting Machine 0.8mm - 4.2mm Wire Dia



Machine Descrition:



The  hydraulic bar straightening and cutting machine is used for straightening and straightening the cutting of steel and steel bars of the building with cold rolling, the failure rate of the equipment is low, and the traction speed is high, which is the continuous working method.

This machine is low consumption, no damage of rib, without even cut light, low noise, vibration, and is equipped with safety device, automatic counting parking device, has high production efficiency, safe and reliable work, equipment and other significant characteristics of low failure rate, simple product maintenance.



Specifications



Strainghtening diameter 4-10 mm
Strainghtening wheels 6 pics
Speed of working 25-35 m/min
Cutting space 900 mm(can be longer)
Error of cutting length ±5 mm
Motor power 5.5 kw
Packing size 2000*800*1000 mm
GW 370 kgs
NW 270 kgs





Competitive Advantage:



1. All the parts of netting sheet cutting machine are processed by our own factory; no parts were sending to

outside to process, so the quality can be ensured.



2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
