1.8G Omni custom wifi antenna With RG316 Pigtail SMA Male Connector
1.8G Omni Custom Wifi Antenna With RG316 Pigtail SMA Male Connector

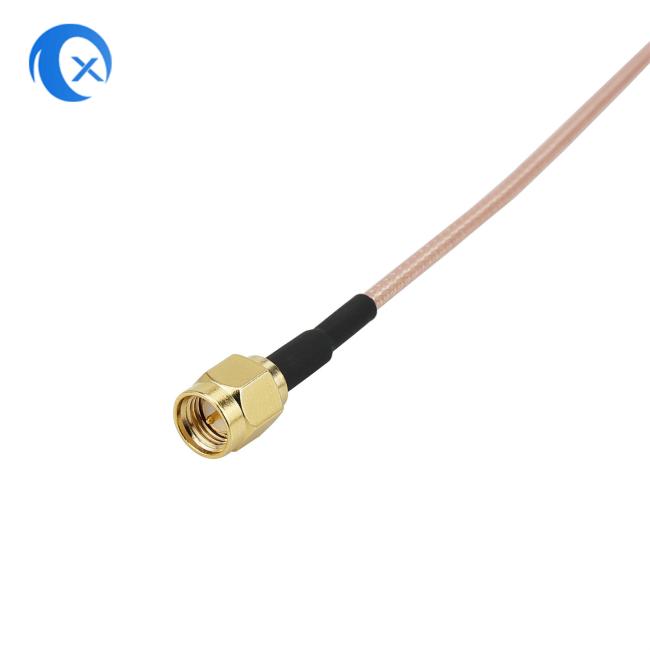

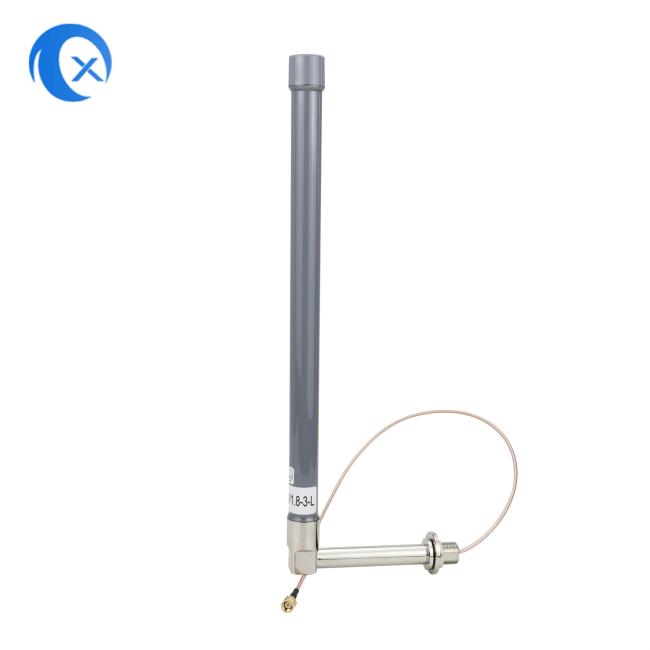

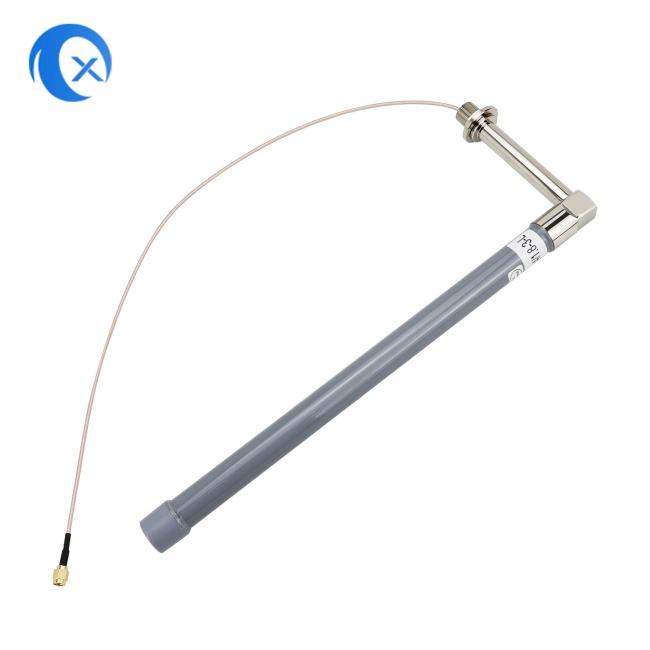

Customized 1.8G omni fiberglass antenna right angle with RG316 pigtail SMA male connector
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.
Electrical Specifications of Ultra-wideband fiberglass antenna
|
Frequency range(Hz) |
1447-1467MHz/1785-1805MHz |
|
Gain (dBi) |
3 |
|
VSWR |
≤2.0 |
|
Input impedance(Ω) |
50 |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Ground |
|
Input connector type |
SMA Male or Requested |
|
Mechanica Specifications |
|
|
Dimensions(mm) |
|
|
Openrating temperature(℃) |
—45～85 |
|
Radome color |
Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omni-directional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
Why choose us?
Product show:
