China Alloy Woven Wire Cloth Mesh , Monel Wire Mesh Low Elongation Carious Hole Shapes for sale

Alloy Woven Wire Cloth Mesh , Monel Wire Mesh Low Elongation Carious Hole Shapes

Name: Alloy Woven Wire Cloth Mesh , Monel Wire Mesh Low Elongation Carious Hole Shapes
Brand: Anping Tianhao Wire Mesh Products Co., Ltd.

Price Negotiable

Price: USD13.9-USD62.5 Per square meter

MOQ: 1 kg

Delivery Time: 5-8 working days.

Brand: TIANHAO

Product Description

300 Mesh Plain Dutch Weave Molybdenum Wire Mesh Used For Sieving or Filtering

Table size,

Item	Molybdenum wire mesh
Material	Pure Molybdenum Wire , Alloy Wire
Mesh Count	1-300 Mesh, parts is in stock

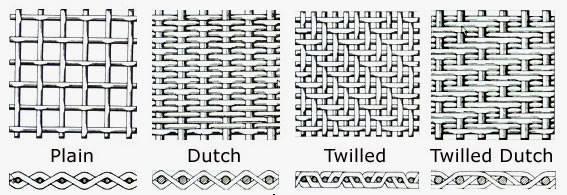

Weaving	Plain Weave, dutch weave and twill weave.
Features	High tensile strength Low elongation Good electricity - conductivity Carious hole shapes Excellent filtering performance
Application	High temperature field for sieving and filtering Aerospace, Nuclear power fields, oil and gas industry, new energy industries, food processing industry
Customized	Available
Stock size	100 mesh/wire diameter,0.05mm

MESH	WIRE DIAMETER		APERTURE/OPENING		%OPEN AREA
MESH	INCH	MM	INCH	MM	%OPEN AREA
2X2	.063	1.60	.437	11.10	76.4
5X5	.041	1.04	.159	4.04	63.2
10X10	.025	.64	.075	1.91	56.3
20X20	.020	.508	.0300	.76	36.0
30X30	.013	.330	.0203	.52	37.1
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0035	.089	.0065	.17	42.3
160X160	.0025	.0635	.0038	.0965	36.4
180X180	.0023	.0584	.0033	.0838	34.7
200X200	.0021	.0533	.0029	.0737	33.6
300X300	.0051	.0381	.0018	.0457	29.7
400X400	.0010	.0254	.0015	.370	36.0

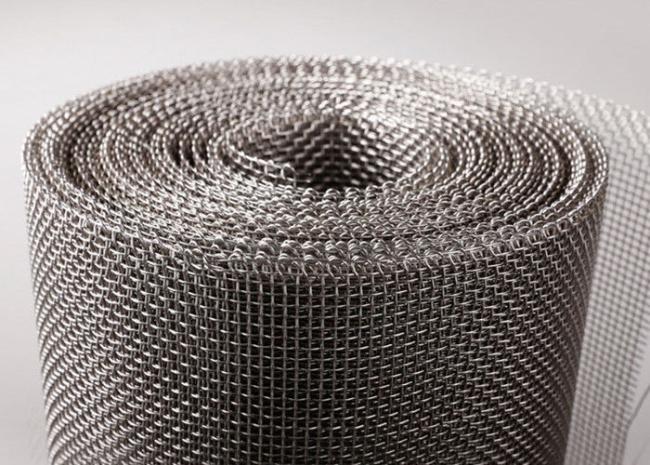

Photo shows,

FAQ

1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.

4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram

Please contact with us freely.
