China 400 Monel Screen Mesh Dutch Waeving 1275 MPa Tensiile Strength 1-400 Mesh for sale

400 Monel Screen Mesh Dutch Waeving 1275 MPa Tensiile Strength 1-400 Mesh

Name: 400 Monel Screen Mesh Dutch Waeving 1275 MPa Tensiile Strength 1-400 Mesh
Brand: Anping Tianhao Wire Mesh Products Co., Ltd.

Price Negotiable

Price: Price will be offered to you once get your detailed specification.

MOQ: 1 kg

Delivery Time: Stocked: within 3days, If no stock, 20-30days.

Brand: TIANHAO

Product Description

Monel 400 Woven Wire Mesh / Cloth / Screen

Production Introduction

Material:monel 400 and Monel K500 wires, alloy wires

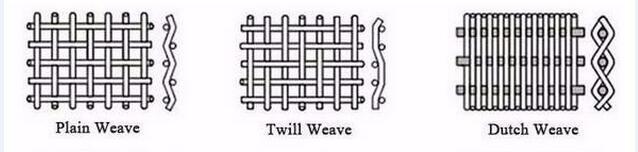

Weave: Plain and twill and Dutch

Mesh: 1-400mesh

Materil details- Monel data for your reference:

Mechanical properties of monel alloy 400

Related character

Tensiile strength (MPa)

yield strength (MPa)

elongation(%)

hardness(HB)

Data

480/1275

170/790

20/35

255/370

Alloy 400 has corrosion resistance properties against folowing sea-water and is extensively used for marine applications.

Alloy 400 is also extremely reisitant to stress corrosion cracking in most freshwaters. alloy 400 used in steam generators,feedwater heaters,cladding of offshore installations,pump and propeller shafts,marine fixtures and fasteners,also chemical processing equipments.

Chemical composition

Grade	%	Ni	Cu	Fe	C	Mn	Si	S
400	min	bal.	28
	max		34	2.5	0.3	2	0.5	0.024

Alloy K-500 is a nickel-copper super alloy with characteristics and corrosion resistance same as the alloy 400.Due to the addition of Aluminum and titanium alloy 500 offers greater strength and hardness than alloy 400.

chemical composition

Grade	%	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
k-500	min	63	27.0	2.30	0.35
	max		33.0	3.15	0.85	2.0	1.5	0.01	0.25	0.5

Chemical composition

Ni:>63; Cu:27/33; Mn<1.5; Fe<2;Si<0.5; A1 2.3/3.15; Ti0.35/0.85

also we can supply monel alloy wire mesh screen.

Mesh size of the Monel Mesh

Main Specification of Monel Wire Mesh (Special Size can be custom made):

Mesh count	Wire diameter(mm)	Aperture(mm)	Max width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60
250	0.040	0.063	1.60
300	0.040	0.044	1.60
325	0.035	0.043	1.60
350	0.030	0.042	1.60
400	0.030	0.033	1.60
