904L Austenitic Stainless Steel Filter Screen UNS N08904 Superior Filter Performance

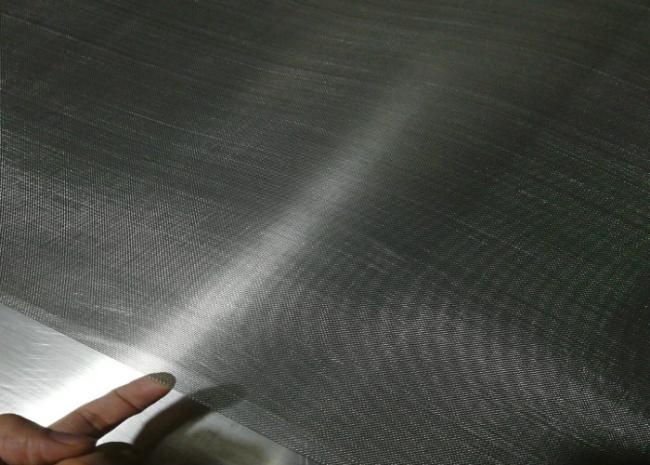

UNS N08904 904L Austenitic Stainless Steel Woven Wire Mesh Filter Screen
Product Description
SS904L stainless steel wire mesh is a non-stabilized low carbon high alloy austenitic stainless steel. The addition of copper to this grade gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid.
It is also highly resistant to chloride attack – pitting / crevice corrosion and stress corrosion cracking.
904L Stainless Steel is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperatures.
Stainless Steel 904l Mesh Chemical Composition:
| C | Cr | Cu | Fe | Pb | Mn | Ni | P | Si | S | Sn |
| 0.08 % | 17–20% | 1 % | Bal | 0.005 % | 2 % | 34-37 % | 0.03 % | 0.75-1.5 % | 0.03 % | 0.025 % |
904L Stainless Steel Wire Mesh Mechanical Properties
|
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
Hardness |
|
490 |
220 |
36 |
70-90 typical |
150 |
904L Stainless Steel Physical Properties
| Grade | 904L | |
| Density (kg/m3) | 7900 | |
| Elastic Modulus (GPa) | 190 | |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
0-100°C | 15 |
| 0-315°C | ||
| 0-538°C | ||
| Thermal Conductivity (W/m.K) | At 20°C | 11.5 |
| At 500°C | ||
| Specific Heat 0-100°C(J/kg.K) | 500 | |
| Elec Resistivity (nΩ.m) | 952 | |
Grade / Material:
WNR 1.4539 / SS 904L / UNS N08904 / SUS904L / 2RK65 / RVS 904L / Uranus B6 / SEW 400 / vdtüv 421.
Diameter: Between 0.05mm to 0.55mm
Apertures: 4mm and greater, square or rectangular
Mesh Count: Between 2 mesh to 400 mesh
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30 to 635mesh.
Dutch weave can be woven up to 3100mesh
Finish: As woven or with edge preparation
Properties / Features:
- Corrosion resistance
- Anti-acid and alkali
- Good filter performance
- Long using life
Application:
- In acid, alkali environment conditions sieving and filtering.
- Petroleum industry as mud mesh.
- Chemical fiber industry as screen mesh.
- Plating industry as acid cleaning mesh.
