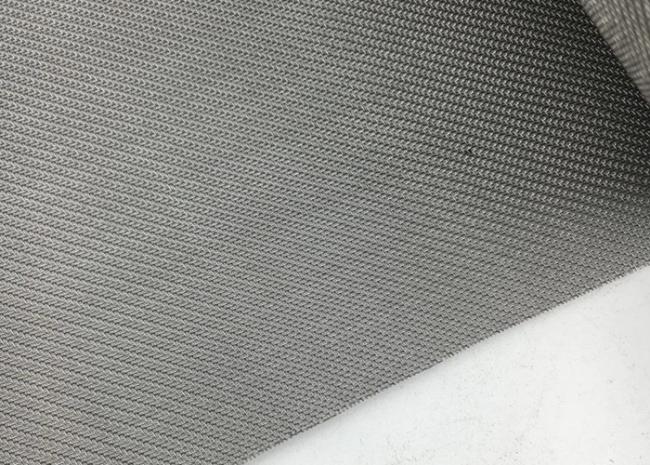

Customized Mesh Count Silver Mesh Screen With High Electric Conductivity
High electric conductivity pure silver wire mesh fabric
1. Details
| material | 99.99% pure silver |
| Wire diameter | 0.08mm-0.3mm |
| Weaving type | Plain weave,twill weave |
| Mesh counts | 10mesh 18mesh 20mesh 40mesh 60mesh 80mesh 100mesh 150mesh |
| Mesh width | 1200mm, 1000mm, 600mm, 400mm, 200mm, 100mm, 50mm, 20mm, can customized mesh count, width and length according to customer’s requirement |
| Features |
Good electric conductivity. thermal conductivity and ductility. |
| Application |
Used as battery collector mesh, electrodes and battery skeleton mesh Filtration material in the high precision filtration equipment. |
2. Size
| Mesh/inch |
Wire diameter (mm) |
Aperture (mm) |
| 1mesh | 2.03 | 22.37 |
| 2mesh | 1.80 | 10.90 |
| 4mesh | 1.20 | 5.15 |
| 6mesh | 0.80 | 3.433 |
| 8mesh | 0.60 | 2.575 |
| 10mesh | 0.55 | 1.990 |
| 12mesh | 0.50 | 1.616 |
| 14mesh | 0.45 | 1.362 |
| 16mesh | 0.40 | 1.188 |
| 18mesh | 0.35 | 1.060 |
| 20mesh | 0.30 | 0.970 |
| 30mesh | 0.25 | 0.596 |
| 40mesh | 0.21 | 0.425 |
| 50mesh | 0.19 | 0.318 |
| 100mesh | 0.10 | 0.154 |
| 120mesh | 0.08 | 0.132 |
| 150mesh | 0.065 | 0.104 |
3.Weaving type
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
| OEM | Yes |
| Special Sizes or Shape | Yes |
| Customized packing | Yes |
| Sample | Can be offered or Made |
| Delivery time | 7-20 days after received the advance payment |
| Payment terms | T/T, Western Union, PayPal, Escrow, L/C,etc |
| Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,FEDEX,UPS,EMS
|
