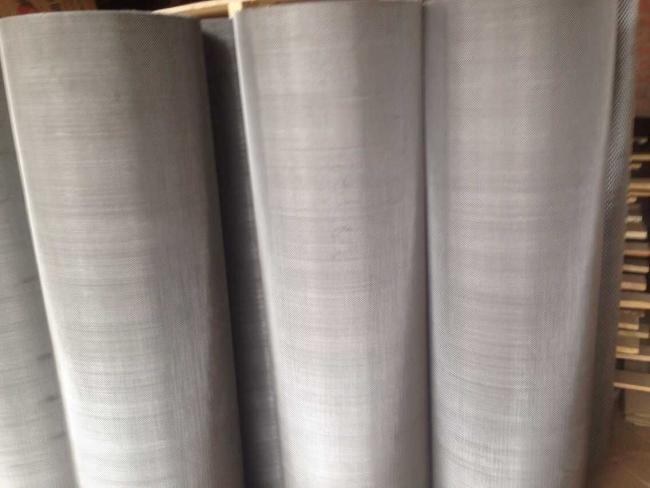

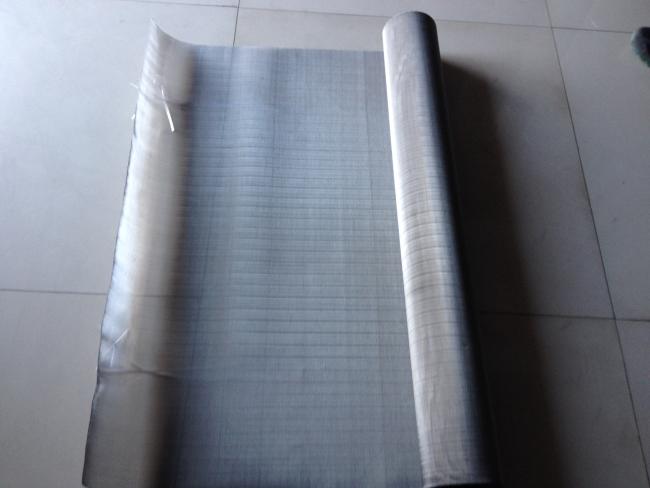

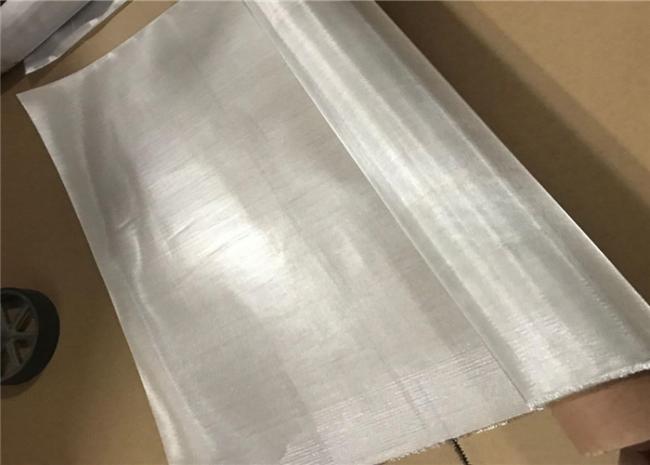

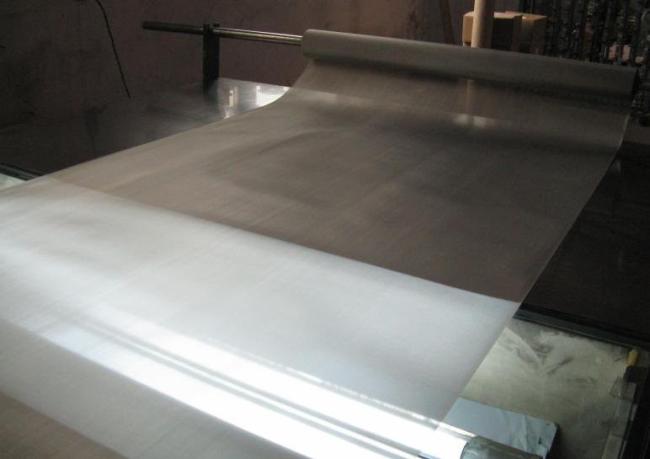

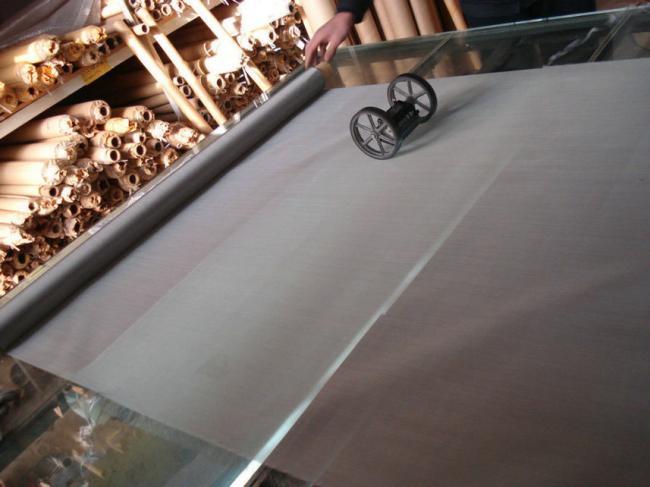

High Precision Stainless Steel Filter Screen , Wire Mesh Screen 1x30m Roll Size
100 120 Mesh 410 430 Stainless Steel Filter Screen Wire Mesh
| material | 410 430 stainless steel wire |
| weaving | plain weave,twill weave ,dutch weave |
| mesh | 1-300mesh |
| characteristics |
1. 410 430 stainless steel wire mesh is magnetic and of good corrosion resistance |
| application | used in mine, oil ,chemical industry,pharmaceutical industry and machine-making etc |
| Stainless Steel Wire Mesh | ||||||
| mesh/inch | wire diameter mm |
aperture mm |
mesh/inch | wire diameter mm |
aperture mm |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
|
Width of Stainless Steel Wire Mesh: 0.6m-6.0m |
||||||
Anping Tianhao Metal Wire Mesh Co.,Ltd was established in 2004 and located in Anping, which is home to wire mesh.
With more than 10 years experience, we manufacture and export all kind of wire mesh,including stainless steel wire mesh,
nickel wire mesh,nickel alloy wire mesh,copper wire mesh,titanium wire mesh and related deep processing products.
- Professional & experienced factory(over 20 years)
- Professional design team& excellent sales team for your service;
- Quick delivery& superior quality
We are very happy if you do not hesitate to send us any of your inquires and we will always give satisfactory services.
