Wire Mesh Filter Disc And Packs , Stainless Steel Nickel Material Discs Filters
Wire mesh Filter Disc and Packs, Stainless steel Nickel material discs filters
Product Introduction
| materials | stainless steel wire mesh |
| weave | plain weave, twill weave, dutch weave |
| edge material | stainless steel sheet, copper sheet, galvanized sheet,aluminium sheet, rubber etc |
| structure | single layer, double layer and multi-layers |
| out diameter | usually 5mm--600mm |
| process technique | spot welded, edge covering and sintered |
| used |
used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Can be used as air filter for car. |
Wire mesh disc is mainly used in the following fields:
1. Chemical products
2. Foodstuffs and spices (milk powder, coffee, tea, rice, grains)
3. Stones and powders (minerals, diamond sizing, ores, alumina)
4. Pharmaceutical products
5. Boards and fixing plates (dividing shavings and wadding)
6. Paper (sieving wood shavings, preparation of coatings)
7. Metal powders (Precision sieving of metal powders)
8. Rubber
9. Animal feedstuffs (dedusting pellets, sieving crumbs, molasses based foodstuffs) 10.Fertilisers (phosphates, potash, urea, mixed fertilisers)
11. Sugar and salt (sizing)
12. plastic Recycling
Features
- Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
- Chemical properties: acid, alkali and corrosion resistance.
- Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.
Application:
It is widely used in filtering of gas and liquid, separating of other medium, Besides, also applied in the field of petroleum, chemical industry, chemical fiber, rubber production, metallurgy, medicine and food industry.
Mesh sizees that could be used for the filter disc
| Items | Mesh | Wire Diameter (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|---|
| SSPW01 | 7 × 7 | 1.00 | 2.63 | SUS304 SUS316 |
| SSPW02 | 10 × 10 | 0.60 | 1.94 | |
| SSPW03 | 12 × 12 | 0.50 | 1.62 | |
| SSPW04 | 16 × 16 | 0.40 | 1.19 | |
| SSPW05 | 16 × 16 | 0.35 | 1.24 | |
| SSPW06 | 18 × 18 | 0.35 | 1.06 | |
| SSPW07 | 20 × 20 | 0.40 | 0.87 | |
| SSPW08 | 24 × 24 | 0.26 | 0.80 | |
| SSPW09 | 30 × 30 | 0.30 | 0.55 | |
| SSPW10 | 35 × 35 | 0.17 | 0.56 | |
| SSPW11 | 40 × 40 | 0.23 | 0.40 | |
| SSPW12 | 50 × 50 | 0.20 | 0.31 | |
| SSPW13 | 60 × 60 | 0.15 | 0.27 | |
| SSPW14 | 70 × 70 | 0.12 | 0.24 | |
| SSPW15 | 80 × 80 | 0.13 | 0.19 | |
| SSPW16 | 90 × 90 | 0.12 | 0.16 | |
| SSPW17 | 100 × 100 | 0.10 | 0.15 | |
| SSPW18 | 120 × 120 | 0.09 | 0.12 | |
| SSPW19 | 150 × 150 | 0.063 | 0.11 | |
| SSPW20 | 180 × 180 | 0.053 | 0.09 | |
| SSPW21 | 200 × 200 | 0.053 | 0.07 |
| Items | Mesh | Wire Diameter. (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|---|
| SSTW01 | 250 × 250 | 0.040 | 0.063 | SUS316 |
| SSTW02 | 300 × 300 | 0.040 | 0.044 | |
| SSTW03 | 325 × 325 | 0.035 | 0.043 | SUS316L |
| SSTW04 | 350 × 350 | 0.030 | 0.042 | |
| SSTW05 | 400 × 400 | 0.030 | 0.033 | |
| SSTW06 | 450 × 450 | 0.028 | 0.028 | |
| SSTW07 | 500 × 500 | 0.025 | 0.026 |
| Items | Mesh | Wire Diameter (mm) | Material (AISI) |
|---|---|---|---|
| SSDW01 | 12 × 64 | 0.58 × 0.40 | SUS304 or SUS316 |
| SSDW02 | 24 × 110 | 0.36 × 0.25 | |
| SSDW03 | 14 × 88 | 0.50 × 0.33 | |
| SSDW04 | 30 × 150 | 0.23 × 0.18 | |
| SSDW05 | 40 × 200 | 0.18 × 0.13 | |
| SSDW06 | 50 × 250 | 0.14 × 0.11 | |
| SSDW07 | 80 × 700 | 0.10 × 0.08 | |
| SSDW08 | 165 × 800 | 0.071 × 0.040 | |
| SSDW09 | 165 × 1400 | 0.06 × 0.04 | |
| SSDW10 | 200 × 1800 | 0.05 × 0.032 | |
| SSDW11 | 825 × 2300 | 0.035 × 0.025 | SUS316L |
| SSDW12 | 400 × 2800 | 0.030 × 0.02 |

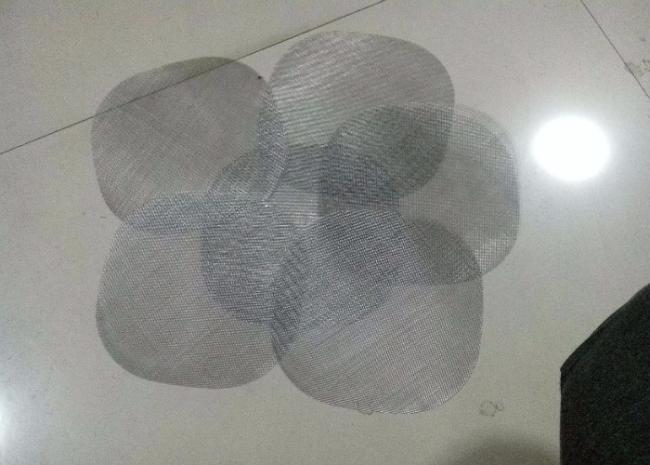

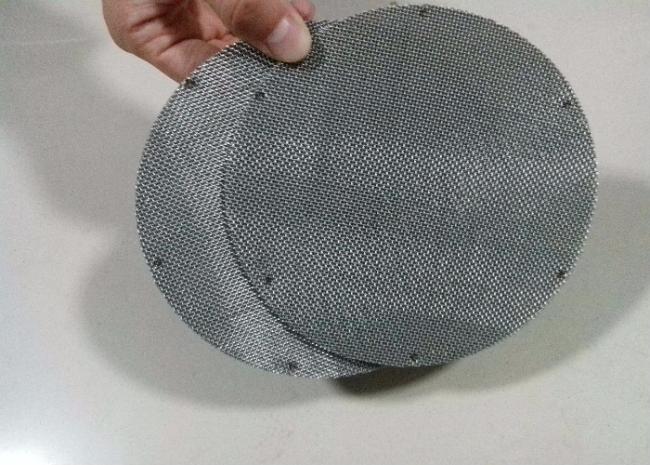

Products pics
