1Cr13AL4 / 0Cr25AL5 / FeCrAl Wire Mesh Screen Plain Twill / Dutch Weaving
FeCrAl Wire Mesh , 0Cr25AL5 wire mesh screen , 1Cr13AL4 wire mesh
What is FeCrAl Wire mesh?
1.Material: 1Cr13AL4. 1Cr12AL4 0Cr21AL6. 0Cr23AL5 0Cr25AL5 0Cr21AL6Nb 0Cr27AL7Mo2
2.Mesh: 2-200 Thickness: Min 0.06mm
3.Weave Pattern: Plain weave, Twill weave
4.Features
High resistance, low temperature coefficient of electric resistance
High operating temperature
Good corrosion resistance under high temperature, especially under the atmosphere containing sulfides.
5.Packing: Seal up with plastic film inside and wooden case or carton box outside. Or according to customer's requirement.
FeCrAl Mesh Highest Working Temperature:
| Alloy | Temperature |
| Cr21Al4 | 1100oC |
| Cr21Al6 | 1250oC |
| Cr23Al5 | 1250oC |
| Cr25Al5 | 1250oC |
| D | 1200oC |
| A-1 | 1350oC |
Properties of FeCrAl Mesh:
- Excellent heat resistance
- Prevents oxidation and sulfur based corrosion
- Anti-carburization
- Large surface load bearing
- High strength and durable
- Low temperature coefficient of resistance
Applications of FeCrAl Heating Mesh:
FeCrAl Mesh is primarily utilized as:
1. drying and heating devices in metallurgy,
2. colliery, dying, food storage,
3. hospital,
4. high density factory, industrial electric furnace,
5. household appliances,
6. gas burners and infrared equipments and heaters.
Mainly used in industrial furnace, household appliances, infrared device. It is an ideal fever material.
Mesh size table
Specification
| Aperture mm
| Wire Diameter mm
| Roll Width m
| Weight kg/m2
| |
Mesh
| Wire Gauge
| ||||
8(T)
| 21
| 2.375
| 0.8
| 1.0
| 2.5
|
8(T)
| 22
| 2.475
| 0.7
| 1.0
| 1.84
|
10(T)
| 23
| 1.94
| 0.6
| 0.6
| 1.69
|
12(T)
| 24
| 1.557
| 0.559
| 1.0
| 1.8
|
17(T)
| 24
| 0.94
| 0.55
| 0.6
| 2.57
|
20(P)
| 33
| 1.02
| 0.25
| 1.0
| 0.587
|
20(P)
| 32
| 1.0
| 0.27
| 1.0
| 0.685
|
20(P)
| 30
| 0.97
| 0.30
| 1.0
| 0.846
|
25(P)
| 30
| 0.71
| 0.30
| 1.0
| 1.125
|
30(P)
| 38
| 0.69
| 0.15
| 1.0
| 0.30
|
34(P)
| 33
| 0.49
| 0.25
| 1.0
| 1.06
|
40(P)
| 35
| 0.425
| 0.21
| 1.0
| 0.83
|
40(T)
| 35
| 0.425
| 0.21
| 1.0
| 0.83
|
44(T)
| 35
| 0.367
| 0.21
| 1.0
| 0.88
|
60(T)
| 38
| 0.273
| 0.15
| 1.0
| 0.66
|
80(P)
| 43
| 0.227
| 0.09
| 1.0
| 0.324 |

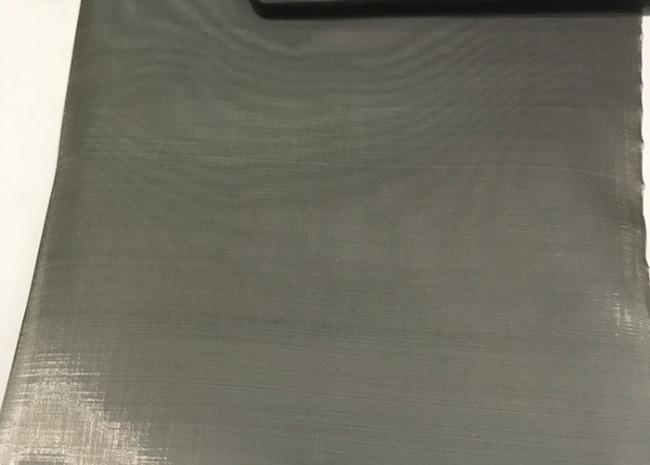

Product pictures
Thanks for your attention, any need, pls feel free to contact with me !
