High Strength Stainless Steel Filter Screen Reverse Dutch Wire Mesh
Stainless Steel 302 304 304L 316 316L Reverse Dutch Wire Mesh
Stainless Steel Reverse Dutch Wire Mesh
1.Material: SS302,304,304L,316,316L etc
2.Weave: Reverse dutch weave
3.Mesh Count: 40-350mesh
4.Roll Width: 40-210mm, Max width:50cm
Roll Length: 10-20m(Can be customized)
Feature:
Anti-corrosive, anti-abrasive
Precision mesh opening
Smooth surface
High hardness
No deformation
High temperature resistant
Flexible with excellent filtration performance, good load strength
Application:
Suitable for plastic wire drawing machine, stretch film machine, coating machine filters, such as plastic woven bag, plastic film.
Used for plastic recycling filter, otherwise wafer type, square type, single or multi-layer molding machine filter.
Common specifications of reverse dutch woven wire cloth:
| Mesh/Inch | Wire Diameter/mm | thickness(mm) | width(cm) |
| 45x15 | 0.45x0.6 | 1.75 | 8-85 |
| 72x15 | 0.45x0.55 | 1.7 | 8-85 |
| 120x16 | 0.35x0.45 | 1.36 | 8-85 |
| 132x17 | 0.3x0.45 | 1.3 | 8-85 |
| 152x24 | 0.3x0.40 | 1.2 | 8-85 |
| 160x18 | 0.28x0.45 | 1.27 | 8-85 |
| 200x40 | 0.15x0.27 | 0.7 | 8-130 |
| 260x40 | 0.15 x0.27 | 0.65 | 8-130 |
| 300x40 | 0.15 x0.27 | 0.65 | 8-130 |
| 350x40 | 0.13 x0.27 | 0.6 | 8-130 |
The mesh size that popular-customers order more:
| Mesh counts | Wire diameter(mm) | thickness(mm) | width(mm) |
| 54*15 | 0.45*0.6 | 1.75 | 50——800 |
| 72*15 | 0.45*0.55 | 1.7 | 50——800 |
| 132*17 | 0.23*0.45 | 1.2 | 50——1000 |
| 160*18 | 0.28*0.45 | 1.27 | 50——1000 |
| 200*40 | 0.17*0.27 | 0.7 | 50——1500 |
| 260*40 | 0.15*0.27 | 0.65 | 50——1500 |
| 300*40 | 0.15*0.27 | 0.65 | 50——1500 |
| 350*40 | 0.13*0.27 | 0.6 | 50——1500 |
More details
| Item | Dutch Weave Stainless Steel Wire Mesh | Stainless Steel Reverse Dutch Weave Mesh |
| Feature |
Acid-resisting, alkali-resisting, strong tension, Stable, fine and high precision filtering performance. |
Smooth surface, high hardness,high temperature |
| Application | Gas, liquid filtration and other medium’s separation. | Suitable for filtering of plastic wire drawing machine, stretch film machine and coating machine. |
| Material | SUS302 304 316 316L | |
| Weaving type | Plain dutch weave, twill dutch weave | |
| Customized | Available | |
| Stock | Most of size have stock all year | |

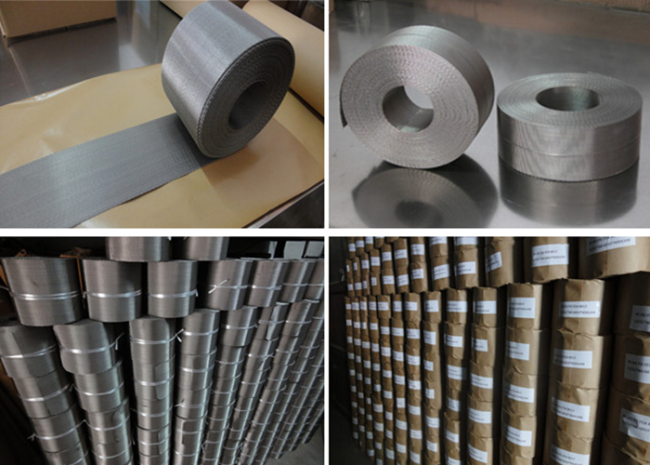

Goods pics
If you will have any need, pls feel free to contact with us soon !
