Precision 100 Micron Mason Wire Mesh Filter Element SS 304 316 316L Materials
Precision super fine 100 micron wedge Johnson Screen filter cartridge
Goods descriptation
| Profile wire |
Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
|
||
| Diameter(mm) |
25.40mm ( Less than 220mm)
|
Length(mm) | 1000mm, (Less than 1500mm long) |
| Open area |
Large open area
|
Efficiency | High |
| Material |
Stainless steel 304 316 monel, hastelloy inconel nickel etc..
|
Function | liquid filtering / liquid solid separation |
| Quality control system | Factory own control | Cleaning way | Back flush, easy to clean |
| Support rods |
Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00
|
End connection | Commen fittings, NPT ,BSP end fittings, calculate price seperately |
| Min slot size |
25 micron
|
Thickness | 0.8-2.5mm |
| Length |
1000mm
|
Filter Rating | up to 90% |
| Color |
Silver(metal original color)
|
Technique | Belgium welding |
Feature
Johnson Wedge Wire Screens have been used in industry for over 100 years. Applications for filtration include self cleaning filters, high temperature strainers, underdrains for media tanks, extruders, and waste water screens.
Wedge wire screens can be made in flat panels, baskets, cylindrical tubes and cartridges.
Application
Johnson Wedge wire screens can be made into almost any shape.
Custom applications can be engineered and built to spec.
304 Stainless Steel or 316 Stainless Steel.
Common micron/mesh ratings: 100, 125, 200, 250, 500, 750, 100, 1250.
TVA has used Johnson Screens for water treatment.
Other customers include food processors, architects, refiners, waste water plants, sugar processors.

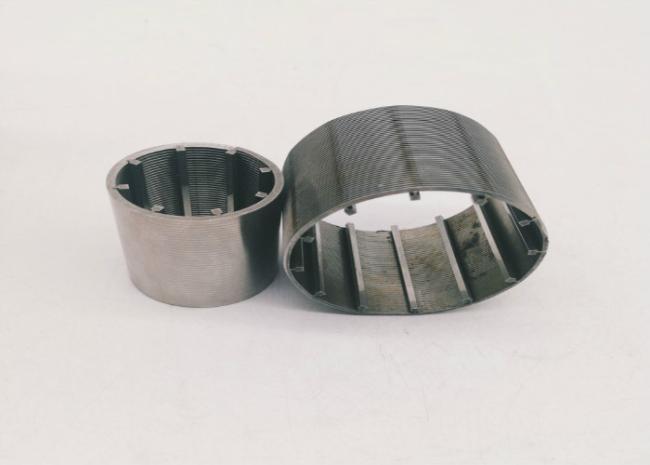

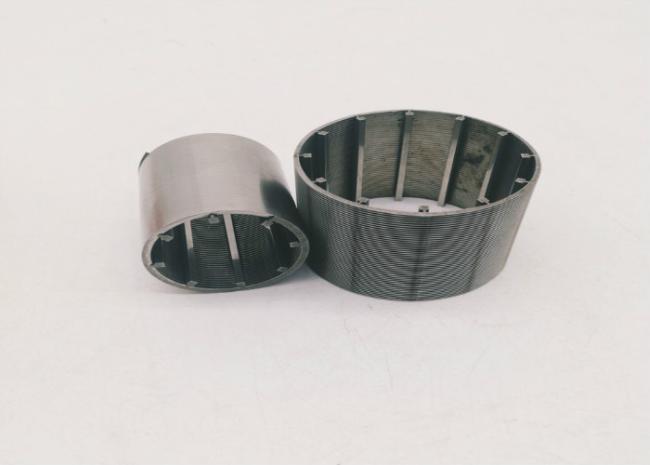

Goods picture
Thanks for your kindly read, if you have any questions and need, pls feel free to contact with us soon.
