10 Micron Sintered Mesh Screen Stainless Steel 316 1 * 1 M Sheets

fluidized bed sintered mesh10 micron stainless steel 316 1 * 1 m sheets

What is Sintered metal mesh fluid bed?

For challenging applications in filtration, sintered steel meshes are now increasingly used instead of filter meshes. Here, a selected range of meshes are bonded together using heat and pressure. This effectively combines the performance advantages of each individual mesh layer and results in optimisation of the filtration process. The resultant bonded mesh enables the finest filtration to be achieved, but thanks to the robust mesh structure, the medium is resistant to physical loading. The smooth surface also offers advantages for the cleaning process when backwashing.

Types of the Sintered mesh

1>> SLS (Single Layer Laminate) Series – Ensures that all warp and shute wires are locked securely. It also allows for easy in deep drawing and forming.

2>> MLS (Multiple Layer Laminates) Series – Ranging from 2 layers to more than 25 individual layers of wire cloth bonded to from a unique integrated structure.

3>>CLS (Custom Design Laminates) –This series of material utilizes woven mesh, perforated steel, and foils to form hybrid materials that are light weight and flexible.

Size of the sintered sheet

• 0.5*1
• 1*1
• 0.6*1.2
• 1.2*1.2

Shape of the sinteed mesh

• Cylinder shape
• Sintered round discs
• Other shape packs

Features

• High strength and rigidity
• Continuous operating temperature range of -200° to 600°C
• Corrosion-resistant
• Abrasion-resistant
• Easily cleaned
• diffusion-bonded wire cloth laminates are made from layers of stainless steel wire cloth, which are furnace-sintered together into seamless sheets. These porous metal structures provide the accurate filtration characteristics of wire mesh for greater strength and durability.

sintered screens can he fastened by several methods, including welding, caulking bars, and threaded fasteners which are welded to the downstream mesh layers. The screens are manufactured to precise dimensions that assure a perfect fit.

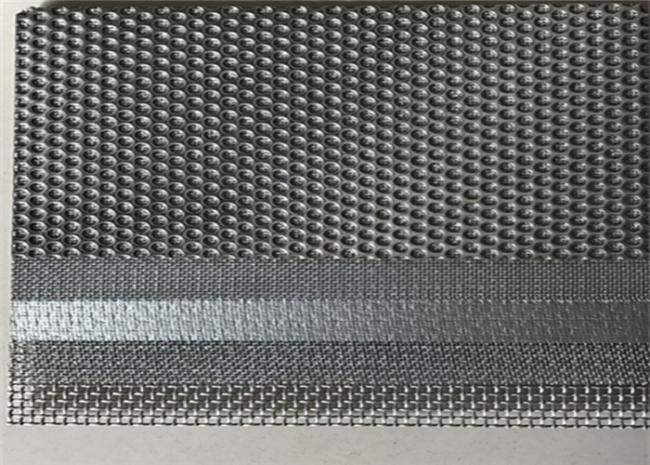

Goods pictures
