Nichrome wire mesh , Nichrome wire mesh baskets, wire mesh tray
Product Description
Nichrome Mesh is made of Nichrome grades -Nichrome 80 and Nichrome 60. It has wide applications in heat treatment and other high temperature environments providing outstanding performance at the variable temperatures up to 1250oC. Upon exposure to air, it produces an adherent oxide layer that prevents oxidation of the beneath metal.
Nichrome mesh is used as filters, support screens and in production of conveyor belts for service at the high temperatures. Commonly used grades for Nichrome mesh are:
Nichrome 80 or Ni80Cr20 is a broadly used heating element in the domestic and industrial heating applications. It offers application temperature up to 1200oC.
Nichrome 60 or Ni60Cr15 has higher value of electric resistivity than Nichrome 80. It is recommended for use at the moderate temperatures up to 1700oF.
Nichrome mesh has excellent deformation resistance, good ductility and corrosion resistance properties that make it a dominating choice for the elevated temperature applications.
Nichrome Mesh Applications
Catalyst
Support for Heaters
Furnace filters
Air filters in heating systems
Other related mesh:
NiCr Grade:
NiCrA
Chemical Composition: 80% Ni, 20% Cr
Approx. Melting Point: 1400°C
NiCrC
Chemical Composition: 61% Ni, 15% Cr, bal. Fe
Approx. Melting Point: 1350°C
Nickel-Chromium Alloy (NiCr) wire meshTypical Applications
a) Oxidation Resistance
b) Heating Elements
c) Thermocouples
d) High Temperature Corrosion Resistant Alloys
e) Wear Resistant Alloys
Chemical composition
| C % | Si % | Mn % | Cr % | Ni % | Fe % | |
|---|---|---|---|---|---|---|
| Nominal composition | Bal. | |||||
| Min | - | 1.5 | - | 21.0 | - | 8.0 |
| Max | 0.10 | 3.0 | 1.0 | 23.0 | - | 9.0 |
Mechanical properties
| Wire size | Yield strength | Tensile strength | Elongation | Hardness |
|---|---|---|---|---|
| Ø | Rp0.2 | Rm | A | |
| mm (in.) | MPa (ksi) | MPa (ksi) | % | Hv |
| 0.5 (0.020) | 390 (56,6) | 800 (116) | 35 | 190 |
Physical properties
| Density g/cm3 (lb/in3) | 8.10 (0.293) |
|---|---|
| Electrical resistivity at 20°C Ω mm2/m (Ω/cmf) | 1.19 (716) |
Applications of the Mesh:
1. drying and heating devices in metallurgy,
2. colliery, dying, food storage,
3. hospital,
4. high density factory, industrial electric furnace,
5. household appliances,
6. gas burners and infrared equipments and heaters.

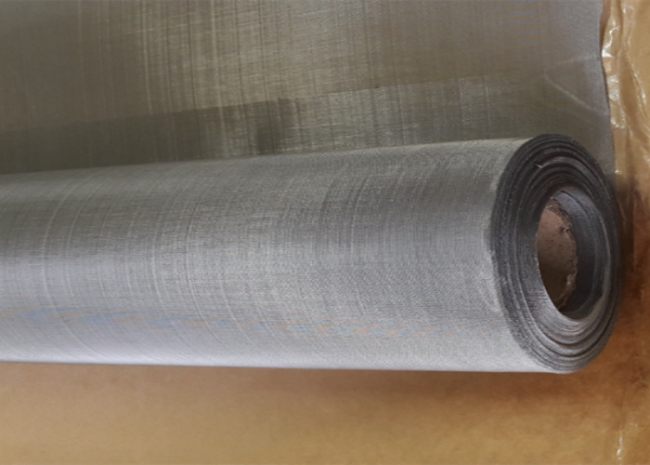

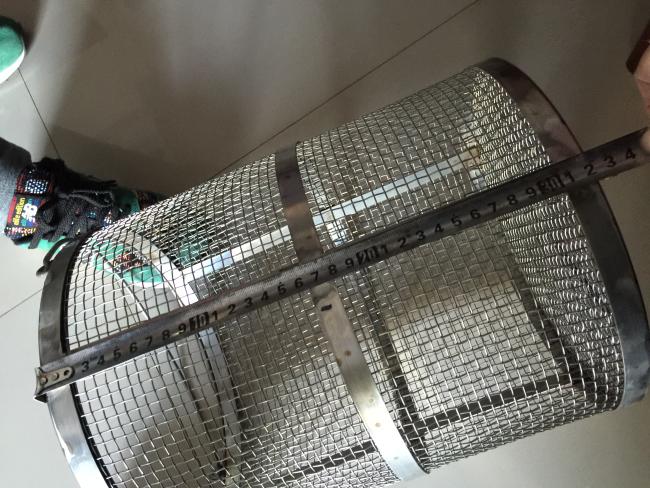

Products pictures
