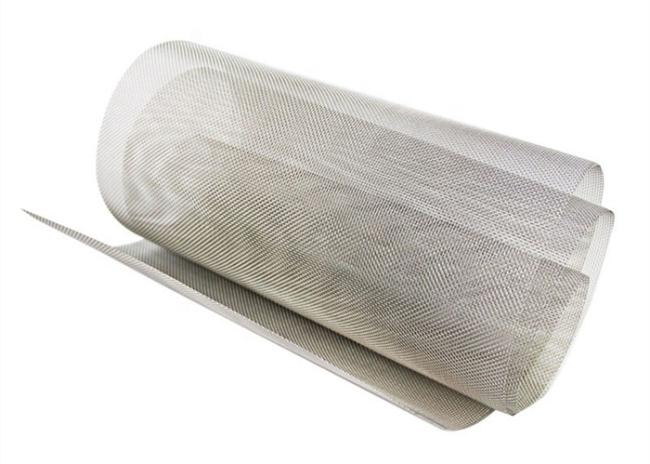

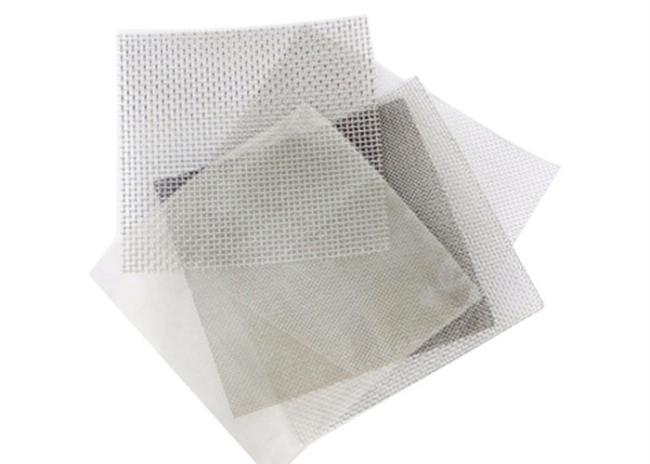

100 Mesh Plain Weave FeCrAl Fine Wire Mesh Screen / Wire Mesh Filter Disc
100 Mesh Plain Weave FeCrAl Wire Mesh Screen
Material: 1Cr13AL4, 1Cr12AL4, 0Cr21AL6, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb, 0Cr27AL7Mo2
Mesh Count: 2-200
Finest wire: 0.06mm
Weave: Plain weave, twill weave
Max working temperature
1Cr13Al4 - 950°
1Cr21Al4 - 1100°
0Cr21Al6 - 1250°
0Cr23Al5 - 1250°
0Cr25Al5 - 1250°
0Cr21Al6Nb - 1350°
0Cr27Al7Mo2 - 1400°
Features of FeCrAl Wire Mesh:
FeCrAl wire mesh is also called FeCrAl alloy woven wire mesh, heating resistance alloy woven wire mesh, electro thermal alloy mesh. It has features of Heating resistance; Oxidation resistance; Sulfur resistance; Anti-penetration; High surface load; High electrical resistivity; Long lasting and durable
Applications of FeCrAl Wire Mesh:
The FeCrAl wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food factory, hospital, high density board factory and so on.
The FeCrAl wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burners and infrared device.
