Customized 1100w Cleanroom Air Shower Powder Coating 201 Stainless Steel
Description
Click to Download Catalog: Air Shower Catalog.pdf
The Air Shower is a necessary passage for people to enter the clean room, which can reduce the pollution caused by people entering and leaving the clean room. It is a kind of local purification equipment with strong versatility, which is installed between the clean room and the non-clean room. When personnel want to enter the clean area, they need to be showered through the air shower. The clean air blown out can remove the dust carried by the personnel, and can effectively block and reduce the dust source from entering the clean area. At the same time, the front and rear doors are electronically interlocked, which can also act as an airlock to control the outside polluted air entering the clean area.

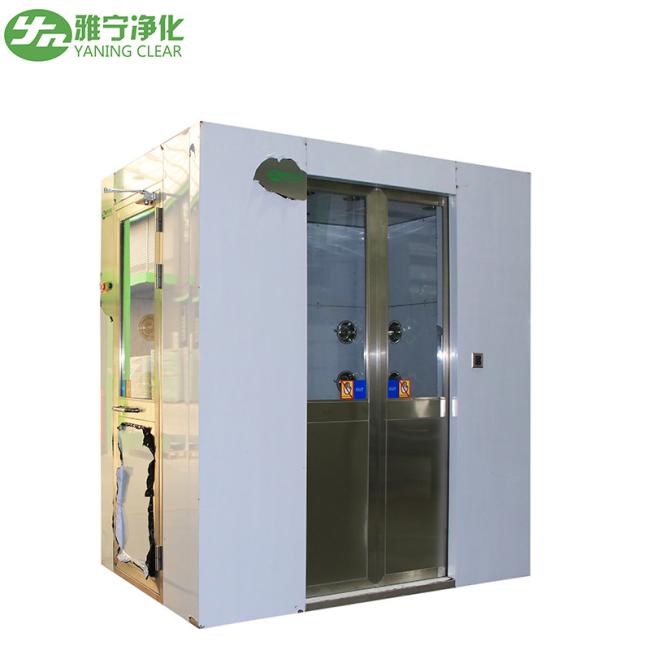

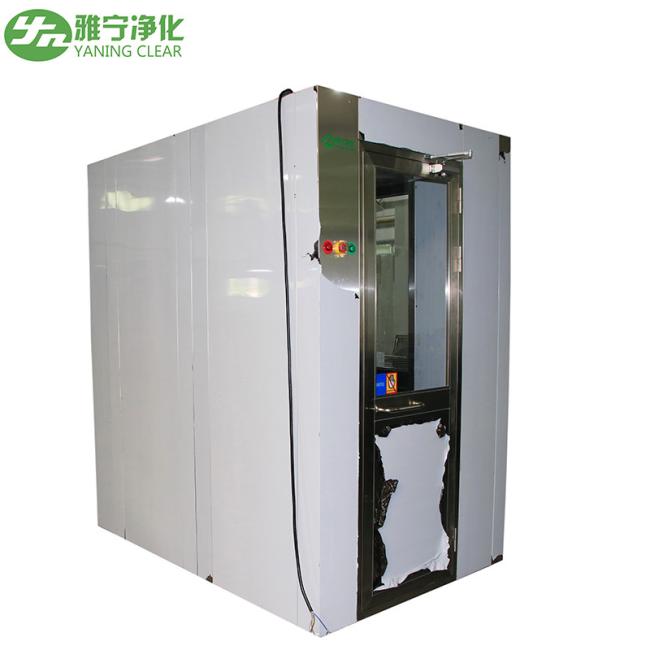

Display![]()
![]()
![]()
Parameters
| Model |
Single Person Double Blow |
Two Person Double Blow |
Three Person Double Blow |
Air Shower Tunnel |
|---|---|---|---|---|
| Body Size(mm) | 1290*1000*2130 | 1290*1500*2130 | 1290*2000*2130 | 1290*3000*2130 |
| Internal Size(mm) | 790*880*1925 | 790*1380*1925 | 790*1880*1925 | 790*2880*1925 |
| Nozzle(pcs) | 12 | 18 | 24 | 36 |
| Suitable Person | 1-2 | 2-3 | 3-4 | 4-5 |
| Noise(dB) | 48-54 | 48-54 | 50-56 | 52-58 |
| Air Velocity(m/s) | 22-27 | 22-27 | 22-27 | 22-27 |
| Power(w) | 1100*1 | 750*2 | 1100*2 | 1100*3 |
| H13 Filter Size(mm) | 610*610*69*1pc | 610*610*69*2pcs | 610*610*69*2pcs | 610*610*69*2pcs |
| Power Supply | 3P, 220/380V,50/60Hz | |||
Features
1.G4 pre filter and H13 HEPA Filter, 2-stage filtration. Ensure purification level.
2. Fully automatic infrared induction blowing
3. Equipped with 360-degree adjustable stainless steel nozzle. Left and right sides blowing shower, large air volume and low noise centrifugal fan. The air velocity of the nozzle can reach 22-27m/s
4. Adopt LCD time display, air shower time is adjustable from 0-99s, show the completion time of air shower, with humanized voice prompts.
Certifications
About us
Dongguan Yaning Purification Equipment Co., Ltd was founded in 2011, is located in Dongguan, the central city of Guangdong-Hong Kong-Macao Greater Bay Area. Have current staff over 200 people, covers a modernized intelligent production site of 30,000 square meters. Yaning is a national high-tech enterprise integrating R&D, design, production, sale, construction, installation and service, has gained certification of ISO, CE, FCC, etc. Yaning is committed to research and develop intelligent, low energy consumption, high efficiency air filtration industrial equipment and medical cleaning products. Yaning has an excellent R&D and production management team in the air purification industry, feature several workshops such as air filter, metal sheet, welding, spraying and assemble. The main products include air shower, cargo air shower, pass box, FFU, BFU, fast shutter door, HEPA box, clean bench, laminar flow hood, sole cleaning machine, weighing booth, sampling booth, clean wardrobe, complete set of hospital operating room equipment, pre/medium/HEPA filter, high temperature resistant HEPA filter, HVAC terminal equipment like air vent louver, regulating valve, fire damper and so on. The products are wildly used in new energy, electronic technology, health, bio-pharmaceutical, foodstuff, precision instrument, aerospace, car-making and other fields.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
