YANING Cleanroom GMP Air Shower With Face Recognition Interlock Door Air Cleaning
YANING Cleanroom GMP Air Shower with Face Recognition Interlock Door Air Cleaning
Product Description:
The air shower is a necessary passage for people to enter the clean room, which can effectively reduce the pollution problems
caused by people entering and leaving the clean room.
The YANING automatic high-tech intelligent air shower room has a voice prompt system, and the full-automatic voice prompt
during the blowing process allows people to complete the entire blowing and dust removal process in an orderly manner.
Use LCD to display the air shower time, the air shower time is adjustable from 0S to 99S.
Product Parameters
| Product Name | Single Person Double Blow |
Two Person Double Blow |
Three Person Double Blow |
Air shower Tunnel |
| Product Model | YN-FLS-01 | YN-FLS-02 | YN-FLS-03 | YN-FLS-04 |
| Outside DimensionsW×D×H(mm) | 1290×1000×2130 | 1290×1500×2130 | 1290×2000×2130 | 1290×3000×2130 |
| Internal Size W×D×H(mm) | 790×880×1925 | 790×1380×1925 | 790×1880×1925 | 790×2880×1925 |
| Suitable Person | 1-2 Person | 2-3 Person | 3-4 Person | 4-5 Person |
| Nozzle | 12 Pcs | 18Pcs | 24 Pcs | 36 Pcs |
| Air Velocity | 22-27m/s | 22-27m/s | 22-27m/s | 22-27m/s |
| Noise | <65 dB(A) | <65 dB(A) | <65 dB(A) | <65 dB(A) |
| G4 Pre filter size(mm) | 745×375×21×1 Pcs | 900×375×21×2 Pcs | 745×375×21×2 Pcs | 745×375×21×3 Pcs |
| H13 Hepa filter size(mm) | 610×610×69×1 Pcs | 610×610×69×2 Pcs | 610×610×69×2 Pcs | 610×610×69×3 Pcs |
| Filter Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm |
| Fan Power(W) | 1100W×1 Pcs | 750W×2 Pcs | 1100W×2 Pcs | 1100W×3 Pcs |
| LED Lamp Power(W) | 15W×1 Pcs | 15W×1 Pcs | 15W×2 Pcs | 15W×3 Pcs |
| Power Supply | Three-phase,380V/50Hz | |||
Configuration Options
1.According to the material requirements:
Powder coated steel, Polish SUS 201/304/316;
Mirror SUS 201/304/316
2.According to power supply requirements:
voltage 220V/380V, frequency 50Hz/60Hz. Number
of phases: single-phase / three-phase;
3.According to the requirements of blowing:
single blow, top blow, double blow, three blow;
4.According to the number of people:
single person, double person,multiple people.
5.According to the door requirements:
manual doors,automatic 90 degree doors, sliding doors,
fast rolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use:
manual door, automatic door, S type, L type,
three-doors air shower, bufferroom, etc.
Features of Cleanroom Air Shower
- Photoelectric sensor, automatic adjustable blowing time (0-99 min), touch panel and timer with LED display.
- Double doors with mechanical or electric interlock.
- HEPA filter,Material stainless steel 304, anti-static
- Auto, Stop, Manual, Emergency Stop function
- Interior fluorescent lamp and flush windows
- A powder failure safety function,Circulation wind,EVA seal
- Modular design, easy for transportation
- Customer sizes are possible
product

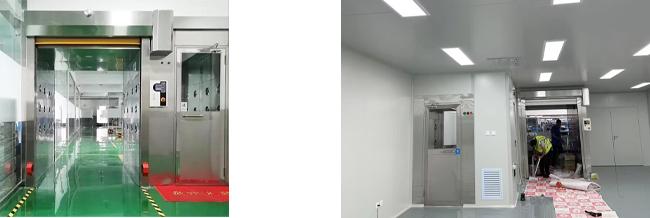

Success case show
